DA22-GP

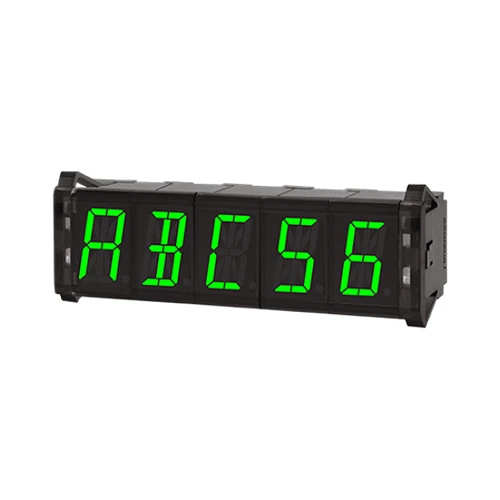

Display, W11.2 X H22.5mm LED, Green, 16-Segment, Parallel Input, 12-24 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Input method | Parallel(dynamic parallel 1/2) input |
|---|---|
| Input logic | Positive logic(PNP), Negative logic(NPN) |
| Display method | 16-segment LED |
| Display color | Green |
| Display characters | Displays 64 types of character and sign(0 to 9, A to Z, 27 signs, dot) |
| Character size | W11.2×H22.5mm |
| Current consumption | Max. 20mA |
| Max. Connections | Dynamic Parallel 1(4bit): 6, Dynamic Parallel 1(6bit): 4, Dynamic Parallel 2(6bit): 24 |
| Power supply | 12-24VDC  |
| Max. Clock | dynamic parallel 1: Max. 3kHz, dynamic parallel 2: Max. 1.5kHz |
| Input resistance | 20kΩ |
| Input level | High: 4.5-24VDC , low: 0-1.2VDC |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Accessories_Basic unit | Right/Left cap: 1, Connector: 1 |
| Protection structure | IP40(front panel) |
| Weight | Approx. 58g(approx. 17g) |
