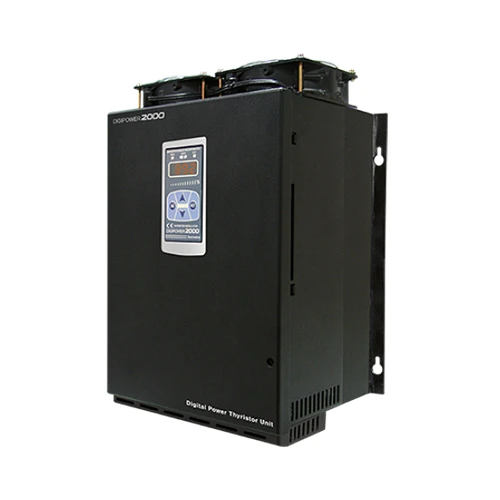

DPU12D-600N
Digital Power Controller, Single-phase, LED Display, 220VAC/600A, Phase control, ON/OFF control, Cycle control, Alam(2a)
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Number of phase | Single-phase |
|---|---|
| Power supply | 220V |
| Output range | Phase control: 5 to 98%, Z.C. control: 0 to 100% |
| Control method | • Phase control: Normal control(Non-Feedback), static voltage/static current/static power control(Feedback) • Cycle control (Z.C.): Fixed cycle control, Variable cycle control • ON/OFF control (Z.C.) |
| Load | • Phase control: resistance load, inductive load • ON/OFF, Cycle control: resistance load |
| Power consumption | Max. 7W (except FAN operation power) |
| Control input | • Auto: 4-20mA / 0-20mA / 0-5VDC ⎓ / 1-5VDC @(=) / 0-10VDC @(=) / voltage pulse (0/12VDC @(=)) / no-voltage input (ON/OFF) / Communication input (RS485) • Manual: inside 10k? VR, outside 3 to 10k? VR (min. 2W) |
| Approval |  |
| Size | 400~600A |
| Rated current capacity | 600A |
| Option | No option |
| Environment_Ambient temperature | -10 to 50℃, storage: 20 to 80? |
| Environment_Ambient humidity | 5~90%RH |
| Weight | 17.5kg |
