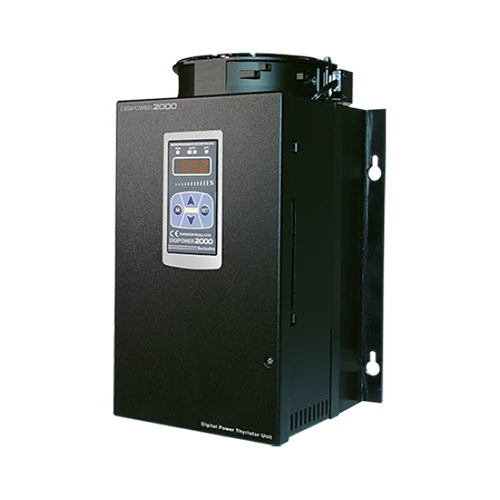

DPU14C-250A
Digital Power Controller, Single-phase, LED Display, 440VAC/250A, Phase control, ON/OFF control, Cycle control, Alam(2a), Remote Display Unit+RS485
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Number of phase | Single-phase |
|---|---|
| Power supply | 440V |
| Output range | Phase control: 0 to 98%, Cycle·ON/OFF control: 0 to 100% |
| Control method | • Phase control: Normal control(Non-Feedback), static voltage/static current/static power control(Feedback) • Cycle control (Z.C.): Fixed cycle control, Variable cycle control • ON/OFF control (Z.C.) |
| Load | • Phase control: resistance load, inductive load • ON/OFF, Cycle control: resistance load |
| Power consumption | ≤ 40 W (control power) |
| Control input | • Auto: 4-20mA / 0-20mA / 0-5VDC  / 1-5VDC / 0-10VDC / voltage pulse (0/12VDC ) / no-voltage input (ON/OFF) / Communication input (RS485)• Manual: inside 10kΩ VR, outside 3 to 10kΩ VR (min. 2W) |
| Size | 250~350A |
| Rated current capacity | 250A |
| Option | Remote Display Unit + RS485 Communication |
| Environment_Ambient temperature | -10 to 50℃, storage: 20 to 80℃ |
| Environment_Ambient humidity | 5~90%RH |
| Weight | ≈ 11.0 kg (≈ 12.1 kg) |
