AUTONICS

    Out Of Stock

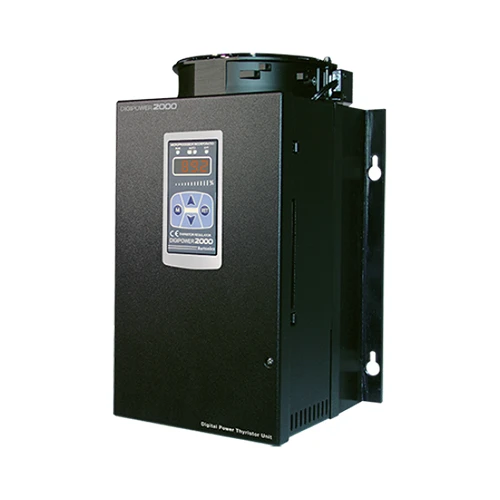

    DPU14C-350N

    Digital Power Controller, Single-phase, LED Display, 440VAC/350A, Phase control, ON/OFF control, Cycle control, Alam(2a)


    $1,725.68 $1,438.07 / each
    1
    DPU14C-350N
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Number of phaseSingle-phase
    Power supply440V
    Output rangePhase control: 0 to 98%, Cycle·ON/OFF control: 0 to 100%
    Control method• Phase control: Normal control(Non-Feedback), static voltage/static current/static power control(Feedback)
    • Cycle control (Z.C.): Fixed cycle control, Variable cycle control
    • ON/OFF control (Z.C.)
    Load• Phase control: resistance load, inductive load
    • ON/OFF, Cycle control: resistance load
    Power consumption≤ 40 W (control power)
    Control input• Auto: 4-20mA / 0-20mA / 0-5VDC EQ / 1-5VDC EQ / 0-10VDC EQ / voltage pulse (0/12VDC EQ) / no-voltage input (ON/OFF) / Communication input (RS485)
    • Manual: inside 10kΩ VR, outside 3 to 10kΩ VR (min. 2W)
    Size250~350A
    Rated current capacity350A
    OptionNo option
    Environment_Ambient temperature-10 to 50℃, storage: 20 to 80℃
    Environment_Ambient humidity5~90%RH
    Weight≈ 11.0 kg (≈ 12.1 kg)
