AUTONICS

    Out Of Stock

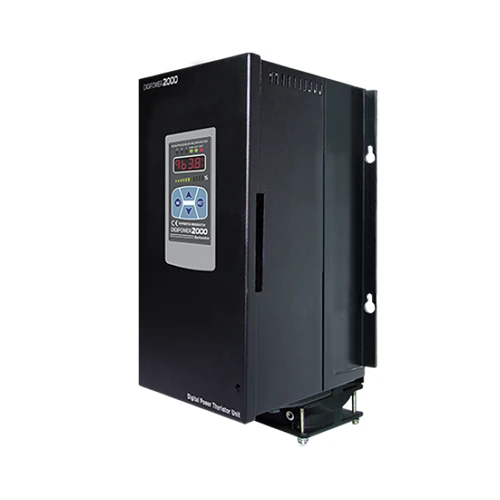

    DPU34A-025D

    Digital Power Controller, 3-phase, LED Display, 440VAC/25A, Phase control, ON/OFF control, Cycle control, Alam(2a), Remote Display Unit


    $1,265.28 $1,054.40 / each
    1
    DPU34A-025D
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Number of phase3-phase
    Power supply440V
    Output rangePhase control: 5 to 98%, Z.C. control: 0 to 100%
    Control method• Phase control: Normal control(Non-Feedback), static voltage/static current/static power control(Feedback)
    • Cycle control (Z.C.): Fixed cycle control, Variable cycle control
    • ON/OFF control (Z.C.)
    Load• Phase control: resistance load, inductive load
    • ON/OFF, Cycle control: resistance load
    Power consumptionMax. 10W (except FAN operation power)
    Control input• Auto: 4-20mA / 0-20mA / 0-5VDC ? / 1-5VDC ? / 0-10VDC ? / voltage pulse (0/12VDC ? ) / no-voltage input (ON/OFF) / Communication input (RS485)
    • Manual: inside 10k? VR, outside 3 to 10k? VR (min. 2W)
    ApprovalCE
    Size0~50A
    Rated current capacity25A
    OptionRemote Display Unit
    Environment_Ambient temperature-10 to 50℃, storage: 20 to 80?
    Environment_Ambient humidity5~90%RH
    Weight6.5kg
