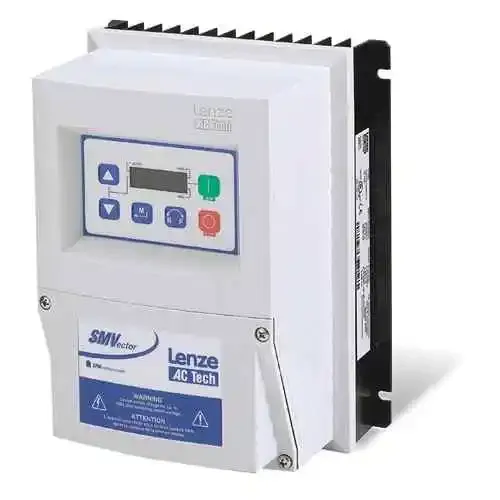

    ESV153N04TFF

    SMV SERIES SENSORLESS VECTOR 20 HORSEPOWER WITH INPUT VOLTAGE 400-480V, OUTPUT 3 PHASE N4X INDOOR/OUTDOOR FILTER

    POWER SUPPLY

    ||

    LENZE

    5.00 10

    10 Review(s)
    $3,939.78 $3,283.15 / each
    165185
    ESV153N04TFF
    LENZE
    FACTORY SEALED
    Brochure SMV.pdf
    Inverter Drives SMVector IP65.pdf

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.

    Product Specifications for ESV153N04TFF

    • Linear torque dynamic response with two separate acceleration ramps and a deceleration ramp.
    • Ramp-to-Stop with S-Type Auxiliary Fixed Accel Boost Improved Starting 500 Hz Output Frequency (Optional is 1,000 Hz).
    • 4, 6, 8, 10, 12, or 16 kHz. switching frequency.
    • Universal Logic Assertion Negative or Positive Logic Input (Selectable)
    • Braking of DC Injection with Regenerative Braking, which is Optional Over Protection of Temperature
    • A potentiometer with a keypad with 8 preset speeds and Jog Floating Point Controls is included in the speed commands. 0-10 VDC Scalable voltage: 4-20 mA scalable current
    • Process Control: Reverse Acting and Direct PID Modes, Sleep Mode
    • From Low to High DC Voltage Monitoring, V Compensation & Low Line for Bus V Protection
    • Currently being monitored: Overload Protection for Motors Limiting the current Safeguard Protection Against Protection of Phase Loss Against Fault from Ground Short Circuits
    • Protective Fault in Follower Management Select Preset Setpoint or Preset Speed. Start the notification system

    Key Benefits

    • Rugged environmental capabilities with IP65 integrity

    • Flux Vector control ensures accurate motor control.

    • Easy-to-use user interface for quick setup

    • Structure of parameters for easy navigation

    • PID controller onboard with energy-saving "Sleep Mode" feature

    • One display shows the status of all user terminals.

    • Built-in EMC filter (240 V 1 only, 400 V/480 V 3 optional), (EN 61800-3) first and second environments, C1 and C2.

    • IEC 60947-3 mains isolator with lock-off option

    I/O Control Features

    • Positive or negative logic

    • Potentiometer with motor

    • 4–20 mA and 0–10 V analog inputs with wire break detection (4–20 mA)

    • Relay output status

    • Keypad that may be mounted from a distance

    Motor Control Features

    • Auxiliary stop ramp

    • UL-approved thermal overload protection system for motors

    • Controller for motor brakes

    • Dual rates of acceleration/declaration

    • 8-speed settings

    • Flying restart

    • Braking using DC injection

    • S ramps

    • Braking with Motor Flux

    • Pump rinse/Fan Purge

    • 16 Step Sequencer
