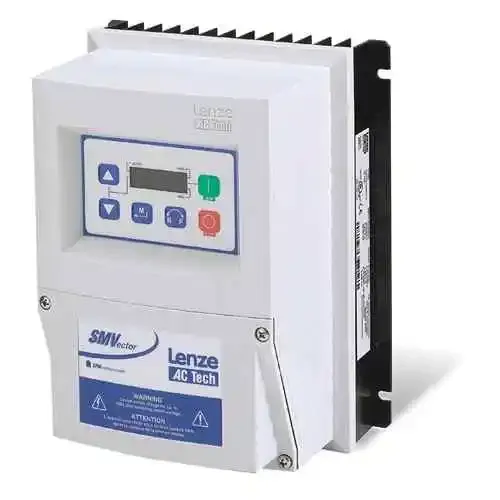

    ESV222N02SFE

    SMV SERIES SENSORLESS VECTOR 3 HORSEPOWER WITH INPUT VOLTAGE 208-240V 1P HOUSING N4X INDOOR/OUTDOOR FILTER

    POWER SUPPLY

    ||

    LENZE

    5.00 10

    10 Review(s)
    $1,050.67 $875.56 / each
    165202
    ESV222N02SFE
    LENZE
    FACTORY SEALED
    Brochure SMV.pdf
    Inverter Drives SMVector IP65.pdf

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.

    Product Specifications for ESV222N02SFE: High-Performance Drive System

    • Linear Torque Dynamic Response: Features two separate acceleration ramps and a deceleration ramp, enabling precise torque control for various industrial applications.
    • Advanced Ramp-to-Stop Functionality: Comes with S-Type Auxiliary Fixed Acceleration Boost for enhanced starting performance. Operates at a standard 500 Hz output frequency, with an optional upgrade to 1,000 Hz.
    • Adjustable Switching Frequency: Offers flexible switching frequency options of 4, 6, 8, 10, 12, or 16 kHz to suit application needs and reduce acoustic noise.
    • Universal Logic Assertion: Selectable negative or positive logic input, allowing seamless integration into diverse control systems.
    • Efficient Braking System: Supports DC injection braking with optional regenerative braking. Includes over-temperature protection to ensure safe operation under demanding conditions.
    • Versatile Speed Control: Features a built-in potentiometer and keypad with 8 preset speeds and jog floating point controls. Supports 0-10 VDC scalable voltage and 4-20 mA scalable current inputs for precise speed adjustments.
    • Process Control Capabilities: Includes reverse acting and direct PID modes, as well as a sleep mode for energy-saving operations during low demand.
    • DC Voltage Monitoring: Monitors a wide range of DC voltage levels, with V compensation and low line bus V protection to maintain consistent performance.
    • Comprehensive Motor Protection: Real-time monitoring for motor overload, current limiting, phase loss, and ground fault protection. Safeguards against short circuits to ensure system reliability.
    • Advanced Fault Management: Includes protective fault systems for follower management. Allows selection of preset setpoints or preset speeds, and features a notification system for real-time alerts.

    Key Benefits

    • Rugged environmental capabilities with IP65 integrity

    • Flux Vector control ensures accurate motor control.

    • Easy-to-use user interface for quick setup

    • Structure of parameters for easy navigation

    • PID controller onboard with energy-saving "Sleep Mode" feature

    • One display shows the status of all user terminals.

    • Built-in EMC filter (240 V 1 only, 400 V/480 V 3 optional), (EN 61800-3) first and second environments, C1 and C2.

    • IEC 60947-3 mains isolator with lock-off option

    I/O Control Features

    • Positive or negative logic

    • Potentiometer with motor

    • 4–20 mA and 0–10 V analog inputs with wire break detection (4–20 mA)

    • Relay output status

    • Keypad that may be mounted from a distance

    Motor Control Features

    • Auxiliary stop ramp

    • UL-approved thermal overload protection system for motors

    • Controller for motor brakes

    • Dual rates of acceleration/declaration

    • 8-speed settings

    • Flying restart

    • Braking using DC injection

    • S ramps

    • Braking with Motor Flux

    • Pump rinse/Fan Purge

    • 16 Step Sequencer



    Product Handbooks

    Options Handbooks

    Transmission Handbooks

    Application Note

    Declaration Of Conformity
