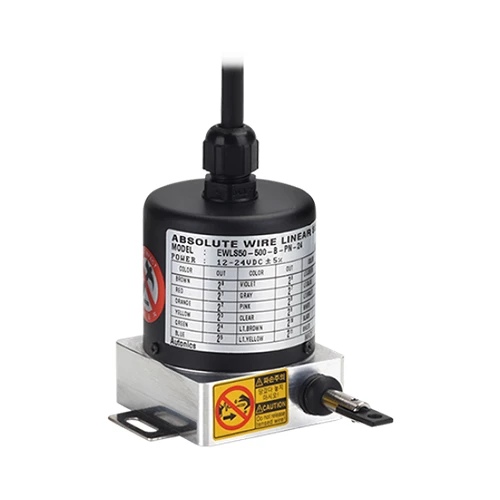

EWLS50-512-B-PN-24
Encoder, Absolute wire type Linear scale, 50mm Size, 512mm range, Binary Code, parallel NPN Output, 12-24 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Shaft outer diameter | 50mm×50mm |
|---|---|
| Max. response frequency | 50kHz |
| Max. output pulse | 5,120division/512mm(resolution: 0.1mm) |
| Measurement range | 512mm |
| Output code | Binary Code |
| Control output | Parallel NPN open collector |
| Power supply | 12-24VDC  ±5%(ripple P-P: max. 5%) |
| Connection type | Axial cable type |
| Min. resolution | 0.1mm |
| Response speed | Max. 500mm/sec |
| Electrical specification_Input_Input signal | Reset |
| Electrical specification_Input_Input level | High: 5-24VDC , Low: 0-1.2VDC |
| Electrical specification_Input_Input logic | Low active, OPEN or HIGH for common use |
| Electrical specification_Input_Input time | Min. 100ms |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Hexagon wrench screw(M4×8) |
| Weight | Approx. 450g |
