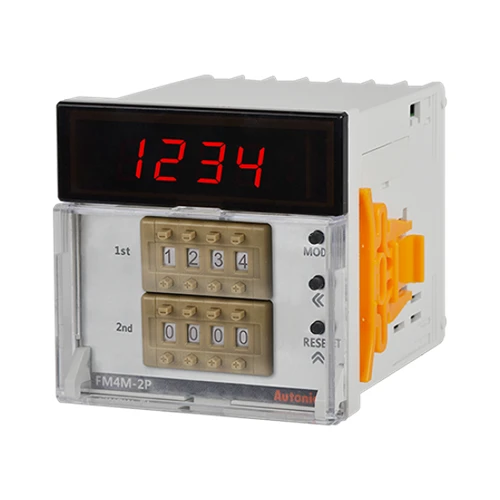

FM4M-2P4
Measuring Counter, W72xH72mm, 4-Digit, LED, 2 Presets(Stage Setting), 2 Relay & 2 NPN Outputs, 100~240 VAC 50/60 Hz
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Display method | 4-digit 7-segment LED |
|---|---|
| Operation method | Count up, Count down, Count up/down |
| Terminal | Terminal block |
| Power supply | 100-240VAC~ 50/60Hz |
| External Power Supply | Max. 12VDC  ±10% 50mA |
| Signal Input Method | Voltage input(PNP), No-voltage input(NPN) |
| Max. Counting Speed | 1, 30, 300, 2k, 5k [cps] |
| Min. signal Width | 20ms |
| Control output_Type | 2-stage preset |
| Control output_Relay | SPST (1a): 2 |
| Control output_NPN open collector | 2 |
| Protection structure | IP20(front panel) |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 265g (approx. 200g) |
