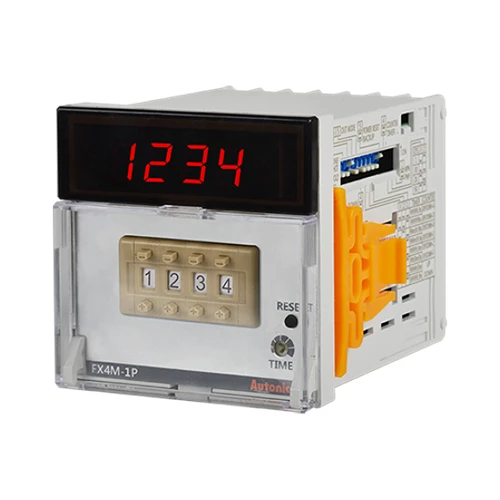

FX4M-1P4
Counter & Timer, W72xH72mm, 4-Digit, LED, 1 Preset, Relay & NPN Output, 100-240VAC 50/60Hz
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Display method | 4-digit 7-segment LED |
|---|---|
| Operation method | Counter: Count up, Count down, Count up/down Timer: Count up, Count down |
| Terminal | Terminal block |
| Output Operation | POWER ON DELAY, FLICKER |
| Power supply | 100-240VAC~ 50/60Hz |
| Time operation | POWER ON START |
| External Power Supply | Max. 12VDC ⎓ ±10% 50mA |
| Signal Input Method | Voltage input(PNP), No-voltage input(NPN) |
| Max. Counting Speed | 1, 30, 2k, 5k [cps] |
| Min. signal Width | 20ms |
| Memory Protection | Approx. 10 years |
| Setting range | 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour |
| Control output_Type | 2-stage preset |
| Control output_Relay | SPDT (1c): 2 |
| Control output_NPN open collector | 2 |
| Protection structure | IP20(front panel) |
| Approval |  |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 265g (approx. 200g) |
