KRN100-10000-01-0S

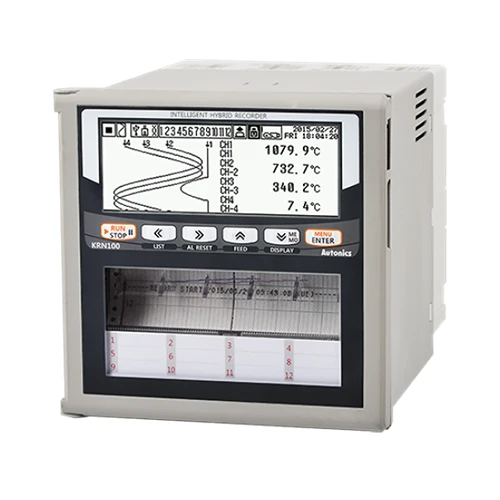

Recorder, 100mm, 10Channel, RS485/Ethernet/USB, 100 to 240VAC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Power supply | 100-240VAC~ 50/60Hz |
|---|---|
| Number of input channels | 10-channel |
| Universal input | Temperature sensor (RTD, thermocouple), analog (voltage, current) |
| Sampling cycle | 1 to 4-channel: 25ms/125ms/250ms, 5 to 12-channel: 125ms/250ms (inner sampling period is operation unit time for average movement filter and alarm output function.) ※Min. sampling period for TC-R, U, S, T sensor is 50ms. |
| Storage cycle | 1 to 3600 sec (storage interval time to inner log file is 1 sec) |
| Innner memory | 512MB |
| USB memory | User purchased, recognizes Max. 32GB, enables to use cable up to 1.5m |
| Protection structure | IP40 (for front panel) |
| Digital inputs | None |
| Alarm transistor outputs | None |
| Alarm relay outputs | None |
| Transmitter power outputs | None |
| Communication output | RS485/Ethernet/USB(KRN-COM×1) |
| Environment_Ambient temperature | 0 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 2.4 to 2.7kg (approx. 1.7 to 2.0kg) |
