AUTONICS

    Out Of Stock

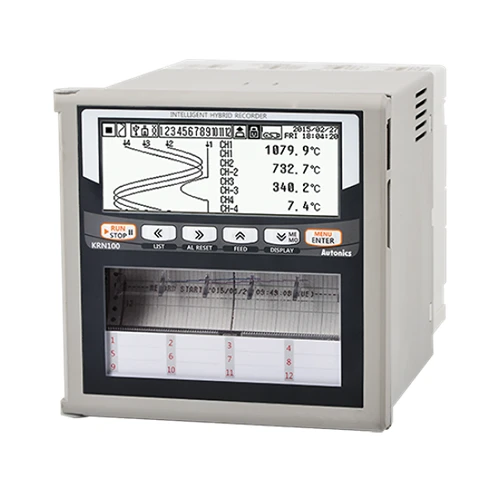

    KRN100-10003-01-0S

    Recorder, 100mm, 10Channel, 12Alam output, RS485/Ethernet/USB, 100 to 240VAC


    $2,790.10 $2,325.08 / each
    1
    KRN100-10003-01-0S
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Power supply100-240VAC~ 50/60Hz
    Number of input channels10-channel
    Universal inputTemperature sensor (RTD, thermocouple), analog (voltage, current)
    Sampling cycle1 to 4-channel: 25ms/125ms/250ms, 5 to 12-channel: 125ms/250ms
    (inner sampling period is operation unit time for average movement filter and alarm output function.)
    ※Min. sampling period for TC-R, U, S, T sensor is 50ms.
    Storage cycle1 to 3600 sec (storage interval time to inner log file is 1 sec)
    Innner memory512MB
    USB memoryUser purchased, recognizes Max. 32GB, enables to use cable up to 1.5m
    Protection structureIP40 (for front panel)
    Digital inputsNone
    Alarm transistor outputsNone
    Alarm relay outputs12(KRN-AR4×3)
    Transmitter power outputsNone
    Communication outputRS485/Ethernet/USB(KRN-COM×1)
    Environment_Ambient temperature0 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    WeightApprox. 2.4 to 2.7kg (approx. 1.7 to 2.0kg)
