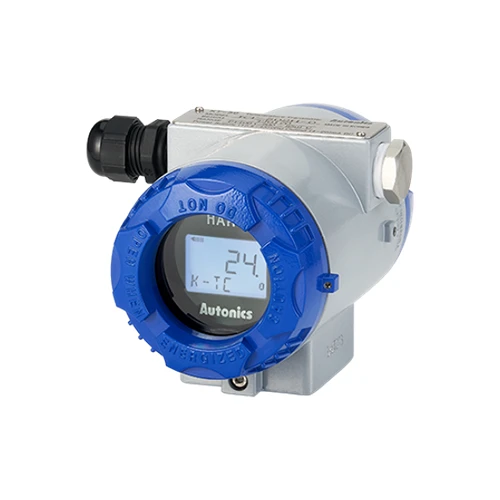

KT-502H-0
Temperature Transmitter, Hart Protocol, TCK 200~1350 C, 4-20mA DC Output, 10.5 to 45VDC Power, Ex-Proof, Without Bracket
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Series | KT-502H | |
| Power supply | 10.5-45VDC (with backlight LCD) | |
| Display method | PV display part: 7 Segment 5 digit(character size: W4×H8mm), Parameter display part: 14 Segment 8 digit(character size: W2.6×H4.8mm), 52 Bar meter | |
| Display range | -19999 to 99999 | |
| Setting method | HART-protocol (no setting key) | |
| Response time | 1 Sec. | |
| Input Type | RTD | DPt100Ω, DPt500Ω, DPt1000? Ni100Ω, Ni500Ω, Ni1000Ω Cu50Ω, Cu100?Ω |
| Thermocouple | K, J, T, E, N, S, B, R | |
| Resistance transmission (Ω) | 0 to 400 ? 0 to 2000 ? | |
| Voltage transmission (mV) | 10-75 mV 100-100 mV 100-500 mV 100-2000 mV | |
| Output | 4-20 mA(2-wire) | |
| Alarm | Below 3.8mA, Over 20.5mA Sensor break 3.6mA | |
| Load | max.(V power supply - 7.5V)/0.22A | |
| Galvanic insulation | 2KVAC(input/output) | |
| Environment | Ambient Temperature | -20 to 70°C, storage: 20 to 80°C |
| Ambient Humidity | 0 to 85%RH | |
| Explosion class*1 | Ex d IIC T6 IP67 | |
| Material | Body : Aluminum(AlDc.8S), Cover O-Ring : Buna N | |
| Unit Weight | Approx. 1.2 kg | |
