CARLO-GAVAZZI

    Out Of Stock

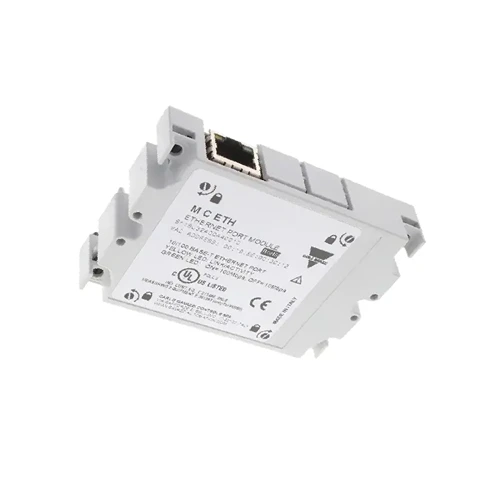

    MCETH

    Energy management clever modular power analyzer with average and maximum calculations for both system and single-phase variables


    / each
    1
    MCETH
    CARLO-GAVAZZI
    FACTORY SEALED
    WM3096DSENG.pdf

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    • According to EN62053-22, class 0.5S (kWh).
    • EN62053-23 defines Class 2 (kvarh).
    • Precision (current/voltage) 0.2% RDG
    • Readout of instantaneous variables: 4x4 DGT
    • Readout of energies: 9+1 DGT
    • System variables: Phase-sequence-asymmetry-loss, VLL,W, A, VA, VLN, var, Hz and PF
    • AL, VLL, VLN, An (calculated), W, VA, PF, and var are variables with single phase.
    • With average and maximum calculations for both system and single phase variables
    • FFT study of harmonics up to the 32nd harmonic (current and voltage)
    • Imported and exported energy metrics are total and partial kWh and kvarh.
    • Measurements of energy in accordance with ANSI C12.20 CA 0.5 and ANSI C12.1
    • Calculate the hours (8 + 2 DGT)
    • A real-time clock feature
    • Displays that can adapt to applications and programming methods (Easyprog function)
    • Power supplies for all devices: 24-48 VDC/AC and 100-240 VDC/AC
    • Front measurements are 96x96 mm.
    • Degrees of front protection: IP65, NEMA4X, and NEMA12
    • One port for RS232 and RS485 (on request)
    • MODBUS-RTU is the communication protocol.
    • Ethernet MODBUS TCP/IP port (on request)
    • BACnet-IP port over Ethernet (on request)
    • BTL authorised BACnet MS/TP over RS485 (on request)
    • PROFIBUS Nutzerorganisation e.V. authorised Profibus DP V0 port (on request)
    • Pulse, alarm, and up to two digital outputs (remote control) (on request)
    • Up to 4 virtual alarms that are flexibly programmable
    • Two analogue outputs maximum (+20mA, +10VDC) (on request)

    The exact weight of the cargo you've scheduled will be measured at the QUANTUM office. We will send you an email with a payment link if the weight difference is larger than the shipment amount. The payment link email will include the new weight and the difference amount that must be paid. If you have any queries concerning this procedure, please contact our customer support team at +1-905-625-3500.
