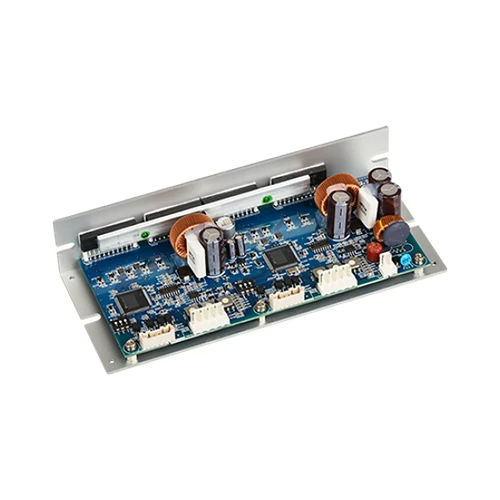

MD5-HD14-2X
Driver, 5 Phase Stepper, 0.4-1.4A/ Phase, 0.72-0.00288 per Step, 1 MHz, 20-35 VDC, 5A
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Operation method | Bipolar constant current pentagon drive |
|---|---|
| Applied Motor | 5-phase stepper motor |
| Resolution | FULL STEP(1-division), HALF STEP(2-division), Micro STEP(4, 5, 8, 10, 16, 20, 25, 40, 50, 80, 100, 125, 200, 250-division) |
| Power supply | 20-35VDC  |
| Max. Run Current | 1.4A/Phase |
| Max. Current Consumption | 5A |
| Number Of Axes | 2-axis |
| Approval |  |
| Input pulse characteristic_pulse width | Min. 1?(CW, CCW), Min. 1ms(HOLD OFF) |
| Input pulse characteristic_Duty Rate | 50%(CW, CCW) |
| Input pulse characteristic_Rising/Falling time | Below 130ns(CW, CCW) |
| Input pulse characteristic_Pulse input voltage | [H]: 4-8VDC , [L]: 0-0.5VDC |
| Input pulse characteristic_pulse input current | 7.5-14mA(CW, CCW), 10-16mA(HOLD OFF, DIVISION SELECTION, ZERO OUT) |
| Input pulse characteristic_Max. input pulse freq | Max. 500kHz(CW, CCW) |
| Environment_Ambient temperature | 0 to 40?, storage: -10 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 446g(approx. 292g) |
