AUTONICS

    Out Of Stock

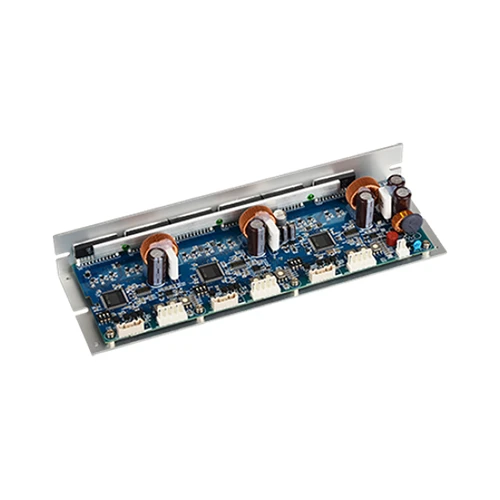

    MD5-HD14-3X

    Driver, 5 Phase Stepper, 0.4-1.4A/ Phase, 0.72-0.00288 per Step, 1 MHz, 20-35 VDC, 7A


    $928.07 $773.39 / each
    1
    MD5-HD14-3X
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Operation methodBipolar constant current pentagon drive
    Applied Motor5-phase stepper motor
    ResolutionFULL STEP(1-division), HALF STEP(2-division), Micro STEP(4, 5, 8, 10, 16, 20, 25, 40, 50, 80, 100, 125, 200, 250-division)
    Power supply20-35VDC EQ
    Max. Run Current1.4A/Phase
    Max. Current Consumption7A
    Number Of Axes3-axis
    ApprovalCE
    Input pulse characteristic_pulse widthMin. 1?(CW, CCW), Min. 1ms(HOLD OFF)
    Input pulse characteristic_Duty Rate50%(CW, CCW)
    Input pulse characteristic_Rising/Falling timeBelow 130ns(CW, CCW)
    Input pulse characteristic_Pulse input voltage[H]: 4-8VDC EQ, [L]: 0-0.5VDC EQ
    Input pulse characteristic_pulse input current7.5-14mA(CW, CCW), 10-16mA(HOLD OFF, DIVISION SELECTION, ZERO OUT)
    Input pulse characteristic_Max. input pulse freqMax. 500kHz(CW, CCW)
    Environment_Ambient temperature0 to 40?, storage: -10 to 60℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    WeightApprox. 597g(approx. 411g)
