AUTONICS

    Out Of Stock

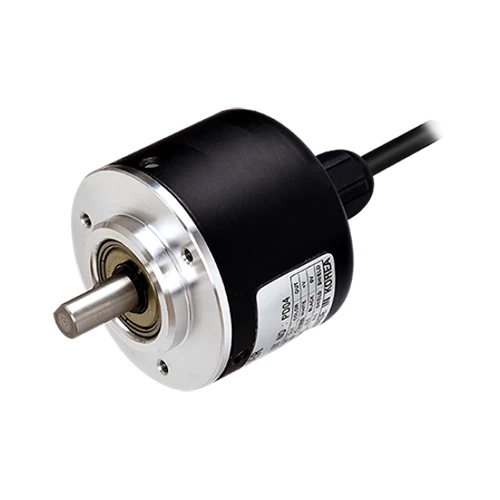

    MGA50S8-1024-3F-N-5

    Magnetic Absolute Rotary Encoder, Ø50mm, 8mm Shaft, 1024 PPR, Gray Code, Output Value Increase at CW Direction, NPN Open Collector Output, 5VDC


    $222.43 $185.36 / each
    1
    MGA50S8-1024-3F-N-5
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Shaft outer diameterØ8mm
    Max. response frequency30kHz
    Max. allowable revolution3000rpm
    Starting torqueMax. 70gf.cm(max. 0.00686N.m)
    Resolution1024P/R
    Output codeGray Code
    Rotating directionCW
    Control outputNPN open collector
    Power supply5VDC @(=) ±5%(ripple P-P: max. 5%)
    Connection typeAxial cable type
    Protection structureIP50
    Approval@(CE)
    Electrical specification_Output_Positioning error±1-bit(LSB: Least Significant Bit)
    Electrical specification_Output_Output phase/Output angleTS: 0.703°±15'(10-bit)
    Environment_Ambient temperature-10 to 70?, storage: -25 to 85?
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 90% RH
    AccessoriesBracket, Coupling
    WeightApprox. 400g(approx. 270g)
