AUTONICS

    Out Of Stock

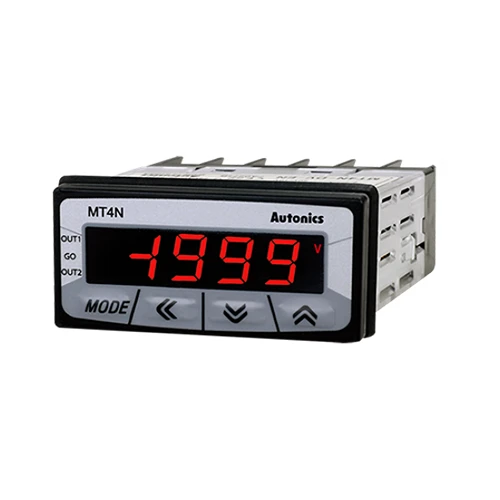

    MT4N-AV-4N

    Meter, AC Amps, LCD, 1/32 DIN, 4-Digit, 0-250 Volt Input, Indication Only, 100-240 VAC


    $187.87 $156.56 / each
    1
    MT4N-AV-4N
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Display method4-digit 7-segment LCD
    Character height9mm
    Max. display Range-1999 to 9999
    MeasurementAC voltage, Frequency
    Input specification0-250V, 0-125V, 0-50V, 0-25V, 0-5V, 0-2.5V
    AC MeasurementAverage value (AVG), Root mean square value (RMS)
    Power supply100-240VAC~
    Output_Main Output(Comparative Value)Indicator
    Display accuracy• 23℃±5℃ - F.S. ±0.3% rdg ±3-digit
    F.S. +0.3% rdg ±3-digit max. only for 5A terminal.
    • -10℃ to 50℃ - F.S. ±0.5% rdg ±3-digit
    Max. allowable input110% F.S. for each measured input range
    A/D conversion methodPractical oversampling using successive approximation ADC
    Sampling cycle16.6ms
    Frequency measurementMeasurement range: 0.100 to 9999Hz(variable by decimal point position)
    Environment_Ambient temperature-10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    Insulation typeDouble insulation or reinforced insulation(mark: INS, dielectric strength between the measuring input part and the power part: 1kV)
    WeightApprox. 127g (approx. 64g)

    The exact weight of the cargo you've scheduled will be measured at the QUANTUM office. We will send you an email with a payment link if the weight difference is larger than the shipment amount. The payment link email will include the new weight and the difference amount that must be paid. If you have any queries concerning this procedure, please contact our customer support team at +1-905-625-3500.
