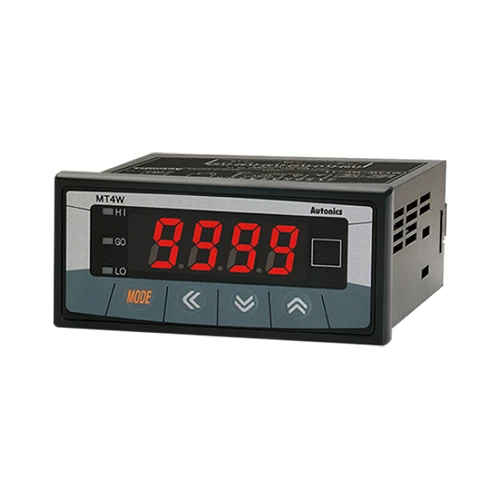

Display method | 4-digit 7-segment LED |
---|---|
Character height | 14.2mm |
Max. display Range | -1999 to 9999 |
Measurement | AC current, Frequency |
Input specification | 0-5A, 0-2.5A, 0-1A, 0-500mA, 0-250mA, 0-100mA, 0-50mA |
AC Measurement | Average value (AVG), Root mean square value (RMS) |
Power supply | 100-240VAC~ 50/60Hz |
Output_Main Output(Comparative Value) | NPN open collector (HI, GO, LO) |
Output_Sub Output(Display Value) | Low speed serial |
Display accuracy | ⢠23â±5â - F.S. ±0.3% rdg±3-digit (frequency: F.S.±0.1% rdg±2-digit) F.S +0.3% rdg ±3-digit max. only for 5A terminal ⢠-10â to 50â - F.S.±0.5% rdg±3-digit |
Max. allowable input | 110% F.S. for each measured input range |
A/D conversion method | ΣΠ(Sigma Delta) ADC |
Sampling cycle | 16.6ms |
Frequency measurement | Measurement range: 0.100 to 9999Hz(variable by decimal point position) |
Hold function | Includes (external hold function) |
Environment_Ambient temperature | -10 to 50â, storage: -20 to 60â |
Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
Insulation type | Double insulation or reinforced insulation(mark: |
Weight | Approx. 326g (approx. 211g) |
