AUTONICS

    Out Of Stock

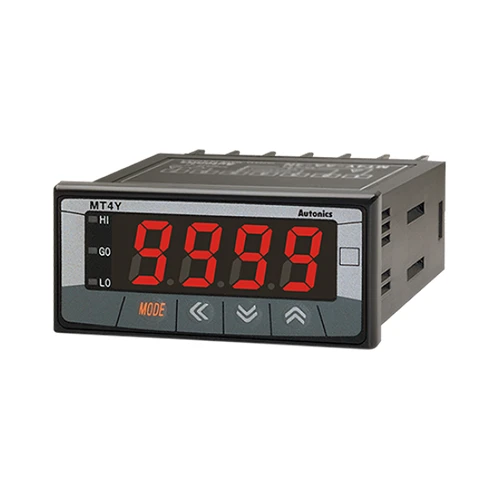

    MT4Y-AV-42

    Meter, AC Volts, LED, W72xH36mm, 4-Digit, 0-500V Input, PNP Ouput, 100-240 VAC


    $237.55 $197.96 / each
    1
    MT4Y-AV-42
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Display method4-digit 7-segment LED
    Character height14.2mm
    Max. display Range-1999 to 9999
    MeasurementAC voltage, Frequency
    Input specification0-500V, 0-250V, 0-110V, 0-50V, 0-20V, 0-10V, 0-2V, 0-1V
    AC MeasurementAverage value (AVG), Root mean square value (RMS)
    Power supply100-240VAC~ 50/60Hz
    Output_Main Output(Comparative Value)PNP open collector (HI, GO, LO)
    Display accuracy• 23℃±5℃ - F.S. ±0.3% rdg±3-digit (frequency: F.S.±0.1% rdg±2-digit)
    F.S +0.3% rdg ±3-digit max. only for 5A terminal
    • -10℃ to 50℃ - F.S.±0.5% rdg±3-digit
    Max. allowable input110% F.S. for each measured input range
    A/D conversion methodΣΔ (Sigma Delta) ADC
    Sampling cycle16.6ms
    Frequency measurementMeasurement range: 0.100 to 9999Hz(variable by decimal point position)
    Hold functionIncludes (external hold function)
    Environment_Ambient temperature-10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    Insulation typeDouble insulation or reinforced insulation(mark: INS, dielectric strength between the measuring input part and the power part: 1kV)
    WeightApprox. 213.5g (approx. 134g)
