AUTONICS

    Out Of Stock

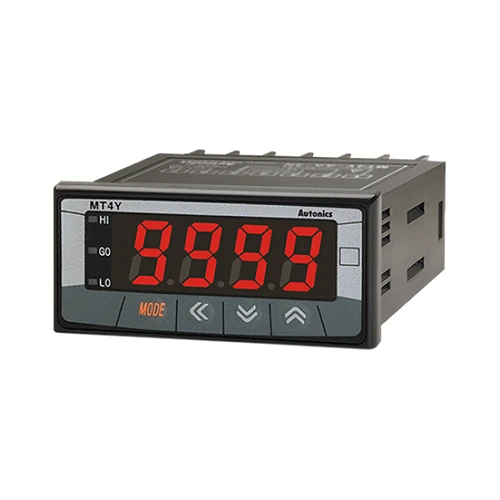

    MT4Y-DA-46

    Meter, DC Amps, LED, W72xH36mm, 4-Digit, 0-5A Input, Low Speed Serial Output, 100-240 VAC


    $222.43 $185.36 / each
    1
    MT4Y-DA-46
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Display method4-digit 7-segment LED
    Character height14.2mm
    Max. display Range-1999 to 9999
    MeasurementDC current
    Input specification0-5A, 0-2A, 0-500mA, 0-200mA, 0-50mA, 4-20mA, 0-5mA, 0-2mA
    Power supply100-240VAC~ 50/60Hz
    Output_Sub Output(Display Value)Low speed serial
    Display accuracy• 23℃±5℃ - F.S. ±0.1% rdg ±2-digit
    F.S. +0.3% rdg ±3-digit max. only for 5A terminal.
    • -10℃ to 50℃ - F.S. ±0.5% rdg ±3-digit
    Max. allowable input110% F.S. for each measured input range
    A/D conversion methodΣΔ (Sigma Delta) ADC
    Sampling cycle50ms
    Hold functionIncludes (external hold function)
    Environment_Ambient temperature-10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    Insulation typeDouble insulation or reinforced insulation(mark: INS, dielectric strength between the measuring input part and the power part: 1kV)
    WeightApprox. 213.5g (approx. 134g)
