AUTONICS

    Out Of Stock

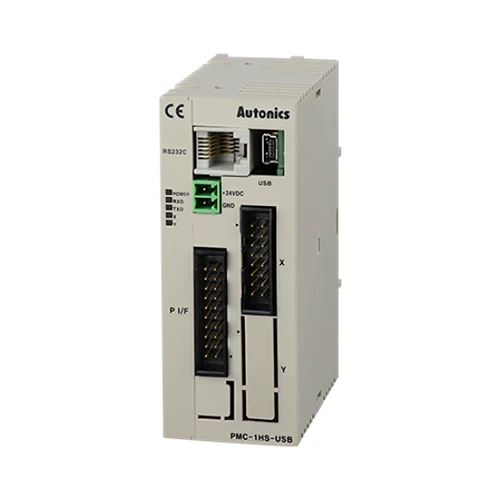

    PMC-1HS-USB

    Motion Controller, 1-Axis control, USB/RS232C Communication, 24 VDC


    $571.27 $476.06 / each
    1
    PMC-1HS-USB
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Number Of Axes1-axis
    TypeIndependent type
    Input/Output ContactParallel I/F: 13/4
    X-axis: 8/5 (general: 0/1)
    Y-axis: 8/5 (general: 0/1)
    Operation modeINDEX, PROGRAM(64-step), JOG, CONTINUOUS
    In-Position SettingABSOLUTE, INCREMENTAL
    Drive Speed1 pps to 4 Mpps
    Connection methodRS232C, USB
    Communication ProtocolAutonics protocol
    Power supply24VDC EQ
    ApprovalCE
    Index step numbers64 indexes per axis
    Inposition range-8,388,608 to 8,388,607 (supports pulse scaling function)
    Drive speed numbers1 pps to 4 Mpps (1 to 8,000 × magnification 1 to 500)
    Accessories_CommonUser manual, CD
    Accessories_Power connector[CN1] MC1, 5/2-ST-3.5(PHOENIX): 1
    Accessories_RS232C connector[CN2] RS-232C communication cable (1.5m): 1
    Accessories_P I/F connector[CN3] 20P MIL standard, 2.54mm connector: 1
    Accessories_X axis input/output connector[CN4] 16P MIL standard, 2.54mm connector: 1 (In case of 2HS, using 2)
    Accessories_USB connectorUSB Communication cable(1m): 1
    Environment_Ambient temperature0 to 45?
    Environment_Ambient humidity35 to 85% RH
    WeightApprox. 421.6g(approx. 96.9g)
