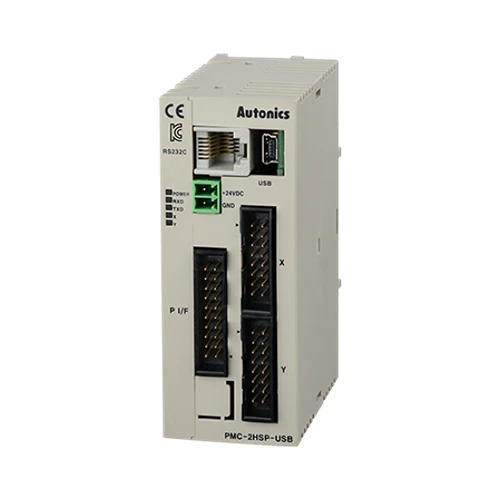

PMC-2HSP-USB
Motion Controller, 2-Axis control, USB Communication, 24 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Number Of Axes | 2-axis |
|---|---|
| Type | Independent type |
| Main Features | S-shaped acceleration/deceleration |
| Input/Output Contact | Parallel I/F: 13/4 X-axis: 8/6 (general: 2/2) Y-axis: 8/6 (general: 2/2) |
| Interpolations | 2-axis linear interpolation, circle interpolation, arc interpolation |
| Operation mode | INDEX, PROGRAM(200-step), JOG, CONTINUOUS |
| In-Position Setting | ABSOLUTE, INCREMENTAL |
| Drive Speed | 1 pps to 4 Mpps |
| Connection method | USB |
| Communication Protocol | Modbus RTU |
| Applied Library | C programming language(provided DLL) |
| Power supply | 24VDC  |
| Approval |   |
| Index step numbers | 64 indexes per axis |
| I/O | • Parallel I/F (CN3): 13 inputs, 4 outputs • X-axis (CN4) / Y-axis (CN5): 8 inputs, 6 outputs (general-purpose I/O, two of each) |
| Accessories | • [Common] Power connector, I/O connector: 3 (PI/F, X-axis, Y-axis), RS232C Communication cable (1.5m): 1 • [USB type] USB Communication cable 1m: 1 •[RS485 type] RS485 connector: 1 |
| Environment_Ambient temperature | 0 to 45℃, storage: -15 to 70℃ |
| Environment_Ambient humidity | 20 to 90%RH, storage: 20 to 90%RH |
| Weight | Approx. 308.7g(approx. 101.6g) |
