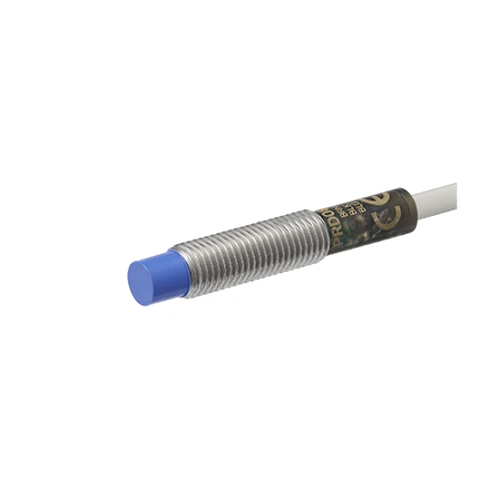

Wire type and power | DC 3-wire type 12-24VDC |
---|---|
Sensing side diameter | M8 |
Sensing distance | 4mm |
Installation | Non-flush |
Standard sensing target | 12×12×1mm(iron) |
Response frequency | 800Hz |
Current specification | Current consumption: Max. 10mA |
Control output | NPN Normally Closed |
Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303), washer: Nikel plated Iron, sensing side: polybutylene terephthalate, standard cable (black): polyvinyl chloride (PVC), oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
Cable Standard/material | Standard cable |
Protection structure | IP67(IEC standard) |
Body length | Standard type |
Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
Hysteresis(distance) | Max. 15% of sensing distance |
Residual voltage | Max. 2V |
Weight | Approx. 43g(approx. 63g) |
Affection by temperature | ≤ ± 10 % for sensing distance at ambient temperature 20 ℃ (DIA. of sensing side Ø 8 mm: ≤ ± 15 %) |
