PRDCMLT18-7DO

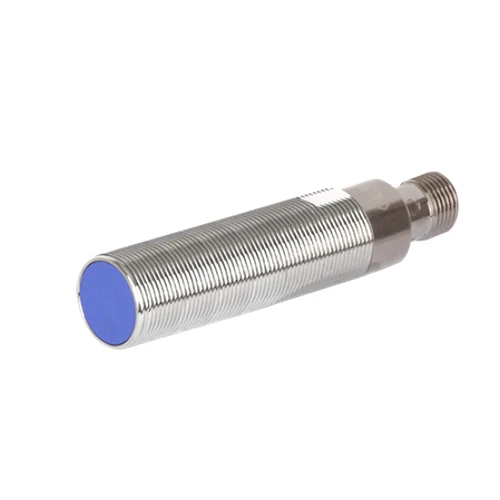

Sensor, Inductive Prox, M18 Round Long, Connector type, Shielded, 7mm Sensing, NO, 2 Wire, 10-30 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Wire type and power | DC 2-wire type 12-24VDC  |
|---|---|
| Sensing side diameter | M18 |
| Sensing distance | 7mm |
| Installation | Shield(flush) |
| Standard sensing target | 20×20×1mm(iron) |
| Response frequency | 250Hz |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Open |
| Material | Brass(nickel plated) |
| Cable Standard/material | Standard connector |
| Protection structure | IP67 |
| Body length | Long body |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 3.5V |
| Weight | ≈ 60g (≈ 78g) |
