AUTONICS

    Out Of Stock

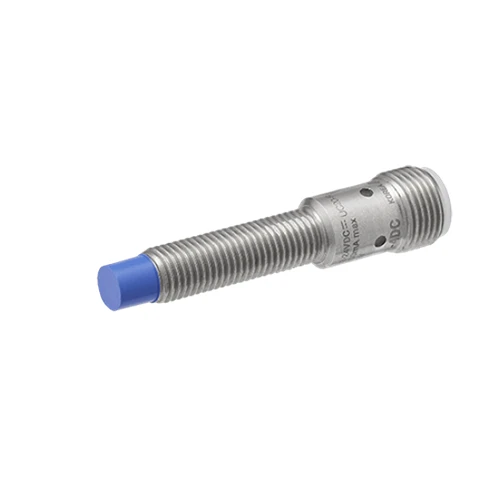

    PRDCMT08-4DC-I

    Sensor, Inductive Prox, M8 Round, Connector type, Non Shielded, 4mm Sensing, NC, 2 Wire, IEC Standard, 10-30 VDC


    $63.30 $52.75 / each
    1
    PRDCMT08-4DC-I
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    InstallationNon-flush
    Sensing side diameterØ8mm
    Sensing distance4mm
    Setting distance0 to 2.8 mm
    Hysteresis(distance)Max. 15% of sensing distance
    Standard sensing target12×12×1mm(iron)
    Response frequency800Hz
    Affection by temperature≤ ± 10 % for sensing distance at ambient temperature 20 ℃
    (DIA. of sensing side Ø 8 mm: ≤ ± 15 %)
    IndicatorOperation indicator (red LED)
    Wire type and powerDC 2-wire type 12-24VDC
    Residual voltageMax. 3.5V
    Environment_Ambient temperature-25 to 70℃, storage: -30 to 80℃
    Environment_Ambient humidity35 to 95% RH, storage: 35 to 95% RH
    Protection structureIP67(IEC standard)
    ConnectionConnector type
    Body lengthStandard type
    MaterialCase/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303),
    washer: Nikel plated Iron, sensing side: polybutylene terephthalate,
    standard cable (black): polyvinyl chloride (PVC),
    oil resistant cable (gray): oil resistant polyvinyl chloride (PVC)
    WeightApprox. 10g(approx. 32g)
