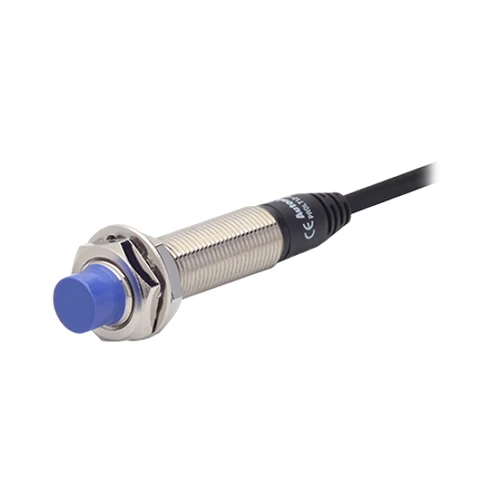

PRDL12-8DN2
Sensor, Inductive Prox, M12 Round Long, Non shielded, 8mm Sensing, NPN, NC, 3 Wire, 10-30 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Wire type and power | DC 3-wire type 12-24VDC  |
|---|---|
| Sensing side diameter | M12 |
| Sensing distance | 8mm |
| Installation | Non-shield(non-flush) |
| Standard sensing target | 25×25×1mm(iron) |
| Response frequency | 400Hz |
| Current specification | Current consumption: Max. 10mA |
| Control output | NPN Normally Closed |
| Material | Brass(nickel plated) |
| Cable Standard/material | Standard cable |
| Protection structure | IP67 |
| Body length | Long body |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 1.5V |
| Weight | ≈ 82g (≈ 94g) |
