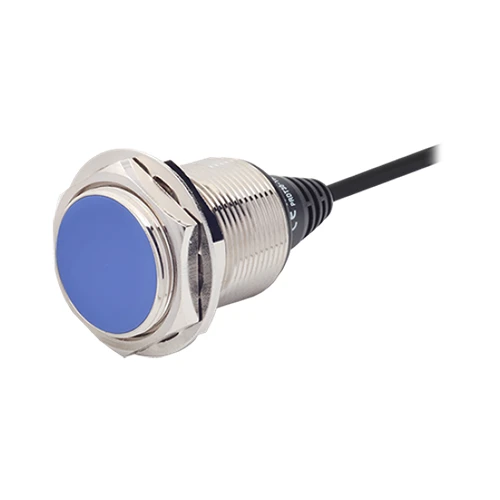

PRDT30-15DO
Sensor, Inductive Prox, M30 Round, Shielded, 15mm Sensing, NO, 2 Wire, 10-30 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Wire type and power | DC 2-wire type 12-24VDC  |
|---|---|
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Installation | Shield(flush) |
| Standard sensing target | 45×45×1mm(iron) |
| Response frequency | 100Hz |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Open |
| Material | Brass(nickel plated) |
| Cable Standard/material | Standard cable |
| Protection structure | IP67 |
| Body length | Standard type |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 3.5V |
| Weight | ≈ 143g (≈ 180g) |
