AUTONICS

    Out Of Stock

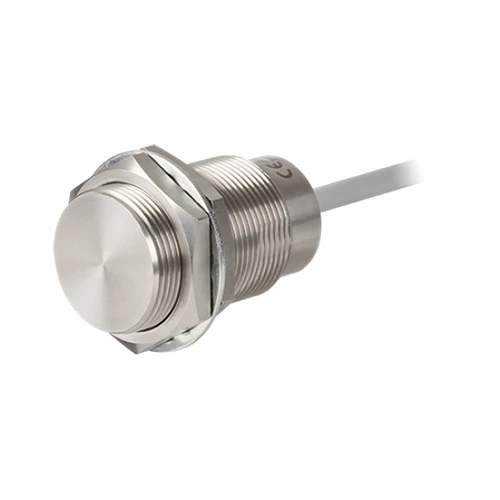

    PRFDT30-12DO-V

    Sensor, Inductive Prox, Full Metal, M30 Round, Shielded, 12mm Sensing, NO, 2 Wire, Oil Resistant Cable Type,10-30 VDC


    $178.50 $148.75 / each
    1
    PRFDT30-12DO-V
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Wire type and powerDC 2-wire type 12-24VDC EQ (10-30VDC EQ)
    Sensing side diameter30mm
    Sensing distance12mm
    InstallationShield(flush)
    Standard sensing target54×54×1mm(iron)
    Response frequency50Hz
    Current specificationLeakage current: Max. 0.8mA
    Control outputDC 2-wire Normally open
    MaterialCase/Nut: stainless steel 303(SUS 303), washer: stainless steel 304(SUS 304), sensing side: stainless steel 303 (SUS 303, thickness of PRFDT12/18: 0.4mm, PRFDT30: 0.5mm), oil resistant cable (gray): oil resistant polyvinyl chloride (PVC)
    Cable Standard/materialOil resistant cable
    Protection structureIP67(IEC standard)
    ApprovalCE CULUS_LISTED EAC
    Body lengthStandard type
    Environment_Ambient temperature-25 to 70℃, storage: -25 to 70?
    Environment_Ambient humidity35 to 95% RH, storage: 35 to 95% RH
    Hysteresis(distance)Max. 15% of sensing distance
    Residual voltageMax. 3.5V
    WeightApprox. 225g(approx. 170g)
