AUTONICS

    Out Of Stock

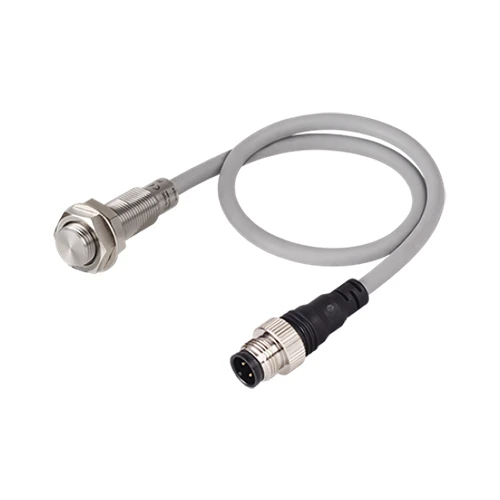

    PRFDWT12-3DO-IV

    Sensor, Inductive Prox, Full Metal, M12 Round, Shielded, 3mm Sensing, NO, 2 Wire, IEC Standard, Oil Resistant Cable Connector Type, 10-30 VDC


    $148.37 $123.64 / each
    1
    PRFDWT12-3DO-IV
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Wire type and powerDC 2-wire type 12-24VDC EQ (10-30VDC EQ)
    Sensing side diameter12mm
    Sensing distance3mm
    InstallationShield(flush)
    Standard sensing target12×12×1mm(iron)
    Response frequency80Hz
    Current specificationLeakage current: Max. 0.8mA
    Control outputDC 2-wire Normally open
    MaterialCase/Nut: stainless steel 303 (SUS 303), washer: stainless steel 304 (SUS 304), sensing side: stainless steel 303 (SUS 303, thickness of PRFDWT12/18: 0.4mm, PRFDWT30: 0.5mm), oil resistant cable (gray): oil resistant polyvinyl chloride (PVC)
    Cable Standard/materialOil resistant cable(IEC standard)
    Protection structureIP67(IEC standard)
    ApprovalCE CULUS_LISTED EAC
    Body lengthStandard type
    Environment_Ambient temperature-25 to 70℃, storage: -25 to 70?
    Environment_Ambient humidity35 to 95% RH, storage: 35 to 95% RH
    Hysteresis(distance)Max. 15% of sensing distance
    Residual voltageMax. 3.5V
    WeightApprox. 110g(approx. 83g)
