PRFWT30-10DO-IV

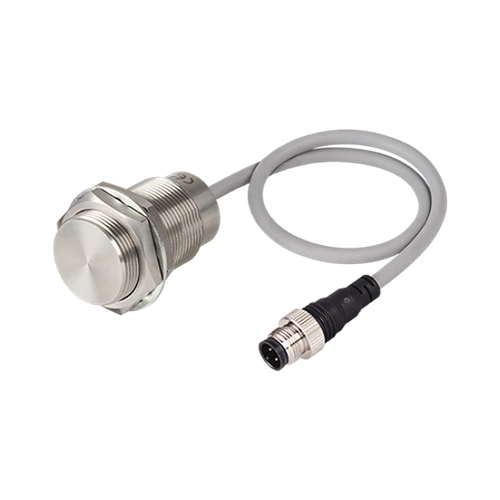

Sensor, Inductive Prox, Full Metal, M30 Round, Shielded, 10mm Sensing, NO, 2 Wire, IEC Standard, Oil Resistant Cable Connector Type, 10-30 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Wire type and power | DC 2-wire type 12-24VDC  |
|---|---|
| Sensing side diameter | 30mm |
| Sensing distance | 10mm |
| Installation | Shield(flush) |
| Standard sensing target | 54×54×1mm(iron) |
| Response frequency | 50Hz |
| Current specification | Leakage current: Max. 0.8mA |
| Control output | Normally Open |
| Material | SUS303 |
| Cable Standard/material | Oil resistant cable(IEC standard) |
| Protection structure | IP67 |
| Body length | Standard type |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Residual voltage | Max. 3.5V |
| Weight | Approx. 225g(approx. 170g) |
