Quality Assurance
OEM Quality Spare Parts.
Out Of Stock

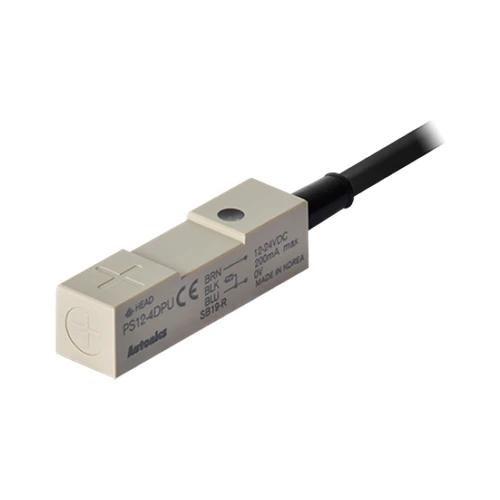

PS12-4DPU
Sensor, Inductive Prox, 12mm Square, 4mm Side Detection, DC, PNP, NO, 3 Wire, 10-30 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Wire type and power | DC 3-wire type 12-24VDC  |
|---|---|
| Sensing side size | Frame size 12mm |
| Sensing distance | 4mm |
| Standard sensing target | 12×12×1mm(iron) |
| Response frequency | 500Hz |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Sensing type | Upper sensing type |
| Material | Heat-resistant ABS |
| Protection structure | IP67(IEC standard) |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Weight | Approx. 77g(approx. 62g) |
