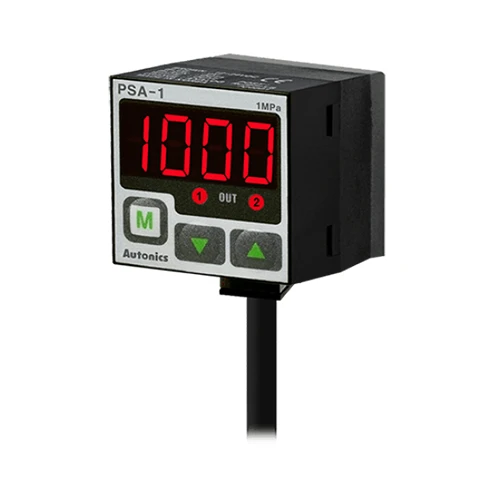

PSA-1-RC1/8
Sensor, Pressure, Standard Pressure, 3 1/2 Digit LED, 0 to 1000 kPa, 2 NPN/1-5 VDC Out, Port Rc 1/8, 12-24 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Applicable fluid | (Pneumatic type) Air, Non-corrosive gas |
|---|---|
| Pressure port direction | Rear fitting(3-direction) |
| Pressure port | Rc(PT)1/8 |
| Connection type | Cable type(cable type cable: 2m) |
| Pressure type | Standard pressure |
| Rated pressure range | 0 to 1,000kPa |
| Display pressure unit | kPa, kgf/cm², bar, psi |
| Control output_NPN open collector | NPN open collector |
| Option input/output | Voltage(1-5VDC  ) output |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 50mA |
| Protection structure | IP40 |
| Approval |  |
| Control output_Hysteresis | 1-digit fixed(2-digit for psi unit) |
| Control output_Repeat error | ±0.2% F.S. ±1-digit |
| Control output_Response time | Selectable 2.5ms, 5ms, 100ms, 500ms |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Front, Rear case: Polycarbonate(insert glass), Pressure port: die-cast(Zn) |
| Weight | Approx. 200g(approx. 120g) |
