AUTONICS

    Out Of Stock

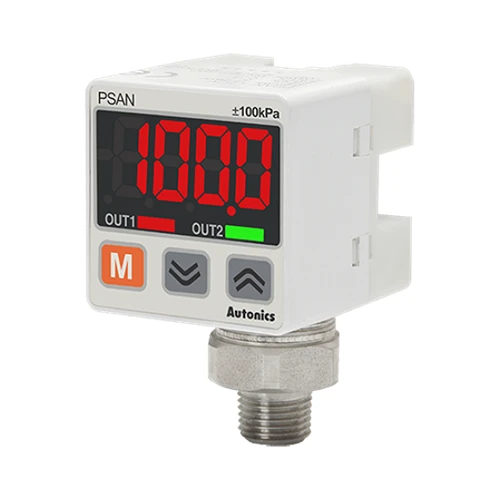

    PSAN-LC01CH-NPT1/8

    Pressure Sensor, Fluid type, Compound pressure, Connector Type, -101.3 kPa to 100.0kPa, NPN open collector output, Hold/Auto shift input, Bottom Port NPT1/8, 12-24VDC


    $356.35 $296.96 / each
    1
    PSAN-LC01CH-NPT1/8
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Applicable fluid(Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port directionBottom fitting
    Pressure portNPT1/8
    Connection typeConnector type(connector type cable: 2m)
    Pressure typeCompound pressure
    Rated pressure range-101.3 to 100.0kPa
    Display pressure unitkPa, kgf/cm², bar, psi, mmHg, inHg, mmH?O
    Control output_NPN open collectorNPN open collector
    Option input/outputHold/Auto shift input
    Power supply12-24VDC ⎓ ±10%(ripple P-P: max. 10%)
    Current consumptionVoltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structureIP40
    ApprovalCE
    Control output_HysteresisMin. display interval
    Control output_Repeat error±0.2% F.S. ±Min. display interval
    Control output_Response timeSelectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature-10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity30 to 80% RH, storage: 30 to 80% RH
    MaterialFront case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    WeightApprox. 173g(approx. 88g)
