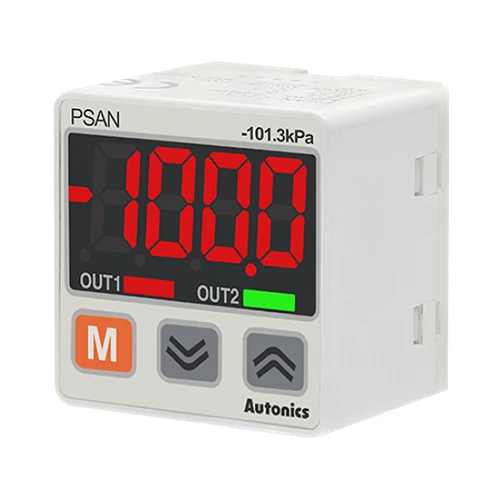

PSAN-V01CV-NPT1/8
Pressure Sensor, Vacuum pressure, Connector Type, 0.0 to -101.3 kPa, NPN open collector /1-5VDC out, Port NPT1/8, 12-24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Applicable fluid | (Pneumatic type) Air, Non-corrosive gas |
|---|---|
| Pressure port direction | Rear fitting |
| Pressure port | NPT1/8 |
| Connection type | Connector type(connector type cable: 2m) |
| Pressure type | Negative pressure |
| Rated pressure range | 0.0 to -101.3kPa |
| Display pressure unit | kPa, kgf/cm², bar, psi, mmHg, inHg, mmH?O |
| Control output_NPN open collector | NPN open collector |
| Option input/output | Voltage(1-5VDC  ) output |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Voltage output type: Max. 50mA Current output type: Max. 75mA |
| Protection structure | IP40 |
| Approval |  |
| Control output_Hysteresis | Min. display interval |
| Control output_Repeat error | ±0.2% F.S. ±Min. display interval |
| Control output_Response time | Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 30 to 80% RH, storage: 30 to 80% RH |
| Material | Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass |
| Weight | Approx. 165g(approx. 80g) |
