PSNT17-5DCU

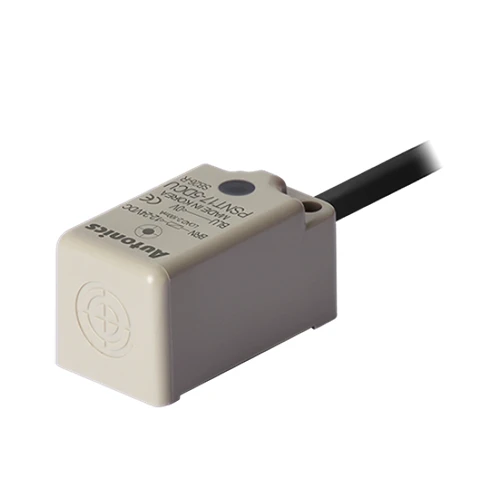

Sensor, Inductive Prox, 17mm Square, 5mm Sensing, Upper side, NC, 2 Wire, 10-30 VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Wire type and power | DC 2-wire type 12-24VDC  |
|---|---|
| Sensing side size | Frame size 17mm |
| Sensing distance | 5mm |
| Standard sensing target | 18×18×1mm(iron) |
| Response frequency | 700Hz |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Closed |
| Sensing type | Upper sensing type |
| Material | Polybutylene terephthalate |
| Protection structure | IP67 |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Weight | ≈ 58g (≈ 79g) |
