AUTONICS

    Out Of Stock

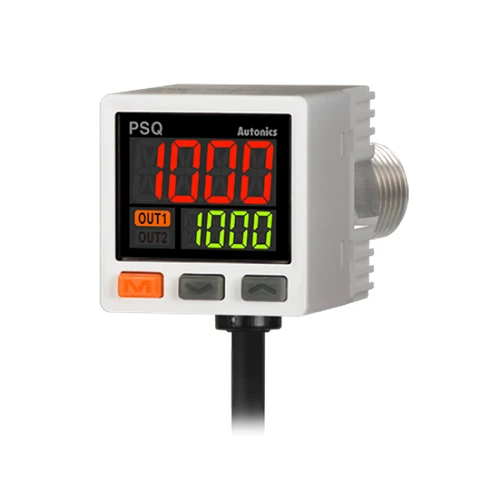

    PSQ-C01C-NPT1/8

    Sensor, Regular Square Type Pressure Sensor, Air, Non-corrosive Gas, Compound Pressure, -100 to 100 kPa, Connector Type, NPN or PNP Open Collector Output, Port NPT 1/8, 12-24 VDC


    $148.37 $123.64 / each
    1
    PSQ-C01C-NPT1/8
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Applicable fluid(Pneumatic type) Air, Non-corrosive gas
    Pressure port directionRear fitting
    Pressure portNPT1/8
    Connection typeConnector type(connector type cable: 2m)
    Pressure typeCompound pressure
    Rated pressure range-100.0 to 100.0kPa
    Display pressure unitMPa, kPa, kgf/cm², bar, psi, mmHg, inHg, mmH₂O
    Control outputSelect one at parameter setting
    NPN open collector output
    PNP open collector output
    Power supply12-24VDC EQ Â±10%(ripple P-P: max. 10%)
    Current consumptionMax. 50mA
    Protection structureIP40
    Control output_HysteresisMin. display interval
    Control output_Repeat error±0.2% F.S. ±Min. display interval
    Control output_Response timeSelect one: 2.5ms, 5ms, 10ms, 25ms, 50ms, 100ms, 250ms, 500ms, 1,000ms, 5,000ms
    Environment_Ambient temperature-10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity30 to 80% RH, storage: 30 to 80% RH
    MaterialFront case: polycarbonate, Rear case: Polybutylene terephthalate + glass 15%, Pressure port: stainless steel 303
    WeightApprox. 165g(approx. 80g)
