PSS-V01V-R1/8

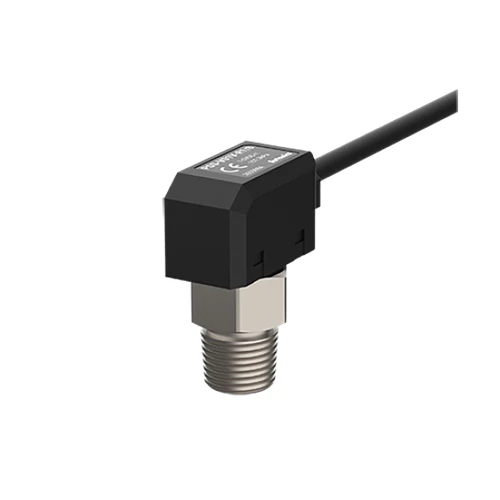

Air, Non-corrosive gas pressure sensor, Negative, 0.0 to -101.3 kPa, R1/8 Port, 1-5VDC Output, 3M Cable, 12-24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Applicable fluid | (Pneumatic type) Air, Non-corrosive gas |
|---|---|
| Pressure port | R1/8 |
| Connection type | Cable type(cable type cable: 3m) |
| Pressure type | Negative pressure |
| Rated pressure range | 0.0 to -101.3kPa |
| Option output | Voltage(1-5VDC ⎓) output |
| Power supply | 12-24VDC @(=) ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 15mA |
| Protection structure | IP40 |
| Approval |  @(EAC) |
| Material | Front/Rear case: PBT, Pressure port: Nickel plated brass |
| Environment_Ambient temperature | 0 to 50℃, storage: -10 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Sold separately | Sensor connector wire mount plug(CNE-P04-YG) |
| Weight | Approx. 60g(approx. 26g) |
