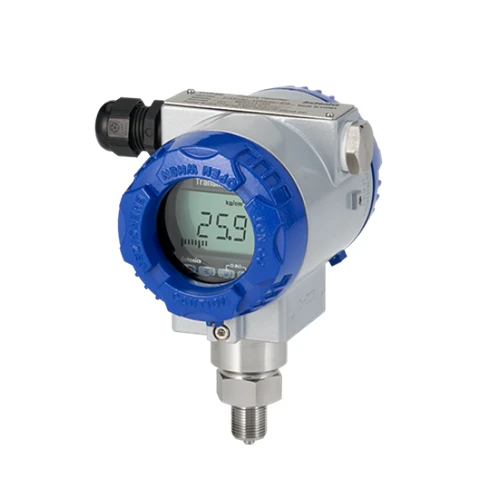

PTF30-A4NB-F8
Standard Pressure Transmitter, Absolute Pressure, 0.00 to 7.00kgf/cm2, W Bracket, PF3/8"
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Power supply | 15-35VDC  |
|---|---|
| Output | DC4-20mA 2-wire Low-limit: 3.6mA(-2.5%), high-limit: 21.6mA(+10%) |
| Accuracy | ±0.2% of F.S. |
| Environment_Ambient temperature | -20 to 70℃, storage: -20 to 80℃ |
| Environment_Ambient humidity | 0 to 85%RH |
| Material | Body: aluminum (AlDc.8S), cover O-Ring: buna N, diaphragm: stainless steel 316, connections: stainless steel 316 |
| Explosion class | Ex d IIC T6 |
| Measurement pressure | Absolute pressure |
| Protection structure | IP67(IEC standard) |
| Pressure range | 0 to 0.7MPa |
| Mounting bracket | With bracket |
| Weight | Approx. 1.2kg |
| Pressure port | G3/8(PF) |
