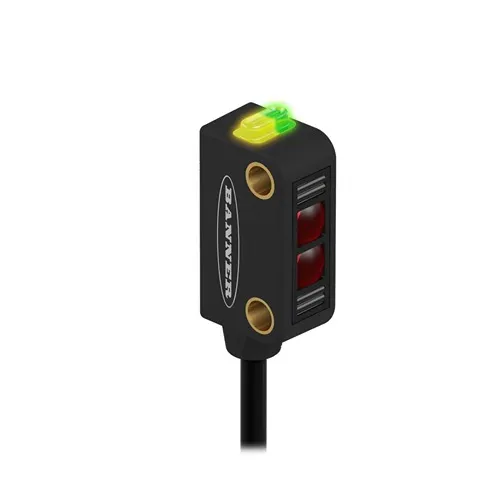

    Q12AB6FF50Q

    World-Beam Q12 Series: Fixed-Field; Range: 50 Mm Cutoff; Input: 10-30 V Dc; Output: Lo (Light Operate) Bipolar: 1 Npn; 1 Pnp; 150 Mm (6 In) M8 Pigtail Qd;


    $112.90 $94.08 / each
    1
    Q12AB6FF50Q
    BANNER-ENGINEERING
    FACTORY SEALED
    Q12AB6FF50Q.pdf

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    IP Rating
    IP67
    Sensing Beam
    Visible Red LED
    Power
    DC
    Sensing Mode (General)
    Proximity
    Sensing Mode (Detailed)
    Background Suppression (Fixed)
    Housing Style
    Rectangular
    Primary Housing Material
    Thermoplastic
    Small Visible Spot
    LED
    Input Output
    Discrete
    Max Sensing Distance (mm)
    50
    Outputs
    Bipolar (NPN & PNP)
    Power Supply/Supply Voltage
    10-30 V dc
    Connection
    Pigtail QD
    Quick Disconnect Type
    M8
    Min Op. Temp. (°C)
    -20
    Operation
    Light Operate
    Max Op. Temp. (°C)
    55
    Output response time (ms)
    0.85 ON/OFF
    Special Feature: Intrinsically Safe
    No
    Special Feature: Remote Teach
    No
    Special Feature: Water Detection
    No
    Sensing Beam Wavelength
    640
    Delay at Power-up (ms)
    120
    Repeatability (µs)
    175
    Number of Pins
    4
    Max Op. Relative Humidity [%]
    95% @ 50°C
    Lens Material
    Polycarbonate
    Adjustments
    N/A
    Indicator
    LEDs
    Feature: Audible
    No
    Feature: Quick Disconnect
    Yes
