Quality Assurance
OEM Quality Spare Parts.
Factory Stock (1 Available)
QS30AF600

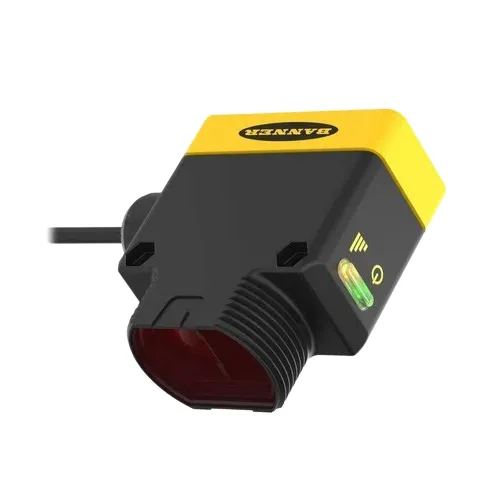

QS30AF600 BANNER PROXIMITY SENSOR QS30 SERIES, RANGE: 50 -
600mm; INPUT: 10-30 V DC OUTPUT: Bipolar: 1 NPN; 1 PNP 2 m (6.5 ft) Cable
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
- WORLD-BEAM QS30 Series: Adjustable-Field
- Range: 50 - 600 mm;
- Input: 10-30 V dc
- Output: Bipolar: 1 NPN
- 1 PNP 2 m (6.5 ft) Cable
- NEMA / UL Type Rating- IP67 NEMA 6
- Cable Length- 2m
- Rectangular w/M30 Mount
- Material- Thermoplastic
- Max Sensing Distance- 600mm
- Outputs- Bipolar (NPN & PNP)
- Power Supply- 10-30 V DC
- Min Operating Temperature- -20°C
- Max Operating Temperature- 60°C
- Output response time- 5ms
- Water Detection- No
- Sensing Beam Wavelength- 660
- Delay at Power-up- 200ms
- Max Operating Relative Humidity- 95% @ 50°C
- Barrel Diameter- 30mm
The exact weight of the cargo you've scheduled will be measured at the QUANTUM office. We will send you an email with a payment link if the weight difference is larger than the shipment amount. The payment link email will include the new weight and the difference amount that must be paid. If you have any queries concerning this procedure, please contact our customer support team at +1-905-625-3500.
