S2SRN-L3ARADM

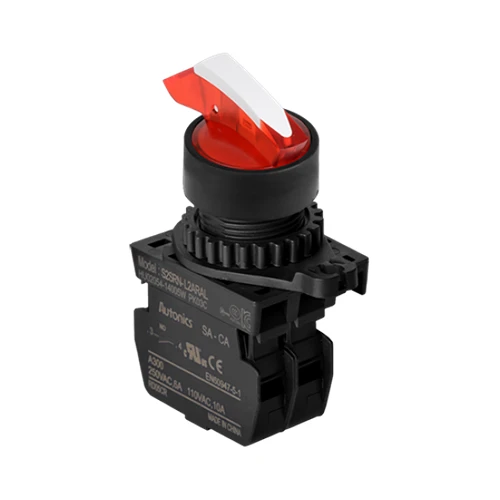

Shark Short Lever Selector Switches, Non-Flush, Illuminated, Ø22/25, 2 Positions maintained Center 0° Right 90°,Red, 1 Normal Open,Multi Stack, LED 12-24VAC 50/60Hz 12-24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Mechanical characteristics_Operation angle | Center 0º , Right 90º |
|---|---|
| Contact block_Electrical specification_Power voltage/current | 110VAC~/10A, 250VAC~/6A |
| LED block_Power supply | 12-24VAC~ 50/60Hz, 12-24VDC  |
| LED block_Current consumption | Max. 20mA |
| Protection structure | IP52 |
| Weight_Mounting hole_Ø22/25 | Approx. 16g |
| Weight_Housing | Approx. 7g |
| Weight_Contact block_Modular type A/B contact | Approx. 10g |
| Weight_LED block_AC/DC voltage type | Approx. 11g |
| Operation type | Short lever 2-position, maintained |
| Color | Red |
| Contact block | A contact: 1 |
| Contact block type | Modular type |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
