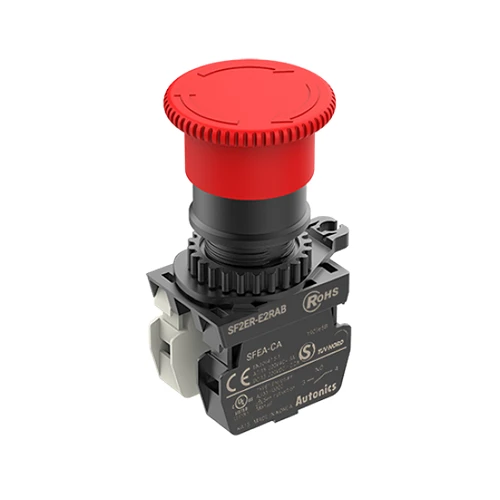

SF2ER-E2RAB
Safety, Emergence Stops, RED, Head Ø40(S), 1NO, 1NC, 24VAC/10A,110VAC/10A,220VAC/6A,380VAC/3A, IP65
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Rated voltage/current | AC-12(220VAC~ |
|---|---|
| Contact operating power | 3.0 to 8.0N/1 contact |
| Operation distance | 5.0mm(0/-0.5) |
| Rotation angle | C.W 52Ëš |
| Allowable operation frequancy_Electrical | 20 times/minute |
| Allowable operation frequancy_Mechanical | 20 times/minute |
| Life cycle_Electrical | Min. 100,000 times |
| Life cycle_Mechanical | Min. 250,000 times |
| Insulation resistance | 100MΩ or more (500VDC megger basis) |
| Dielectric strength | 2,500VAC 50/60Hz for 1 minute |
| Vibration | 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours |
| Vibration_Malfunction | 1.5mm double amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 10 minutes |
| Shock | 1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times |
| Shock_Malfunction | 250m/s² (approx. 25g) in each X, Y, Z direction for 3 times |
| Environment_Ambient temperature | -20 to 65℃, storage: -40 to 70℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP65 (oil resistant, IEC standard) |
| Material | Button: polycarbonate, body: polyamide 6, lever in fixing unit: polyamide 6 |
| Weight | Approx. 66g |
