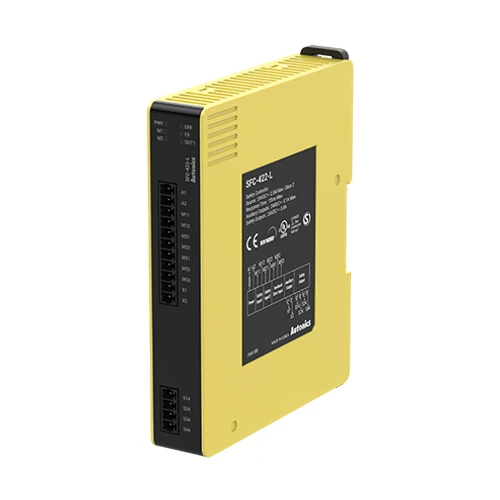

SFC-422-L
Safety Controller, Basic type, 4 Instantaneous P-ch FET Output, 2 PNP Output, Screw-less Terminal block, 24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Power supply | 24VDC |
|---|---|
| Allowable voltage range | 85 to 110% of rated voltage |
| Power consumption | 2.5W |
| Input | ON: ≥11 VDC ≥ 5mA, OFF: ≤ 5VDC ≤ 1mA |
| Cable | ≤ 100m (≤ 100Ω, ≤ 10nF) |
| Safety output | P channel FET |
| Instantaneous | 4 × |
| Load current | Below 2-point output: ≤ DC 1A, Over 3-point output: ≤ DC 0.8A |
| Leakage current | ≤ 0.1mA |
| Sub output | 2 × PNP transistor: X1, X2 (error) |
| Logical AND connections | No. of connections: max. 4 units, no. of total connections: max. 20 units, No. of layers: max. 5 layers, cable length: max. ≤ 100m |
| International standards | IEC/EN 61508 (SIL3), IEC/EN 62061 (SILCL3), IEC/EN 60947-5-1, EN ISO 13849-1 (Category 4, PLe), UL listed E249635 |
| Weight | Approx. 70g (approx. 120g) |
