AUTONICS

    Out Of Stock

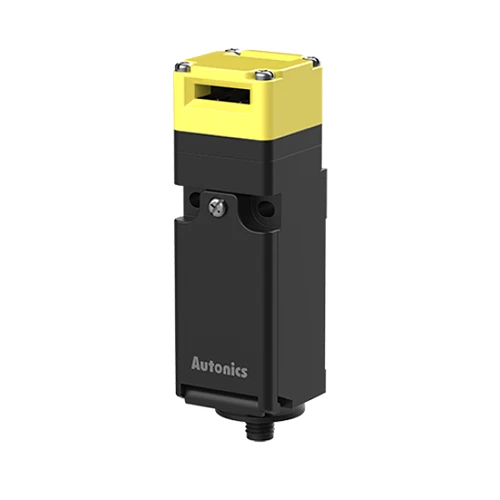

    SFD-A2B-G1/2

    Safety Door Switch, Plastic head, 2NC,1NO, Terminal, G1/2 Gland port size, 250VAC/6A, 250VDC/0.6A, IP67(IEC standard, except head)


    $61.00 $50.83 / each
    1
    SFD-A2B-G1/2
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Rated load voltage & currentResistive load : 6A/250VAC~, 0.6A/250VDCEQ
    Inductive load : AC-15 3A/240VAC~,DC-13 0.27A/250VDCEQ
    Directing opening forceMin. 80N
    Directing opening distanceMin. 10mm
    Operating speed0.05 to 1m/s
    Operating frequencyMax. 20/min
    Applicable cableAWG 20-18 (0.5 to 0.75mm²)
    Insulation resistance100MΩ or more (500VDC megger basis)
    Contact resistanceMax. 50mΩ (initial value)
    Dielectric strength_Between the terminals2kV
    Dielectric strength_Between each terminal and non-live part5kV
    Conditional short circuit current100A
    Life cycle_ElectricalMin. 100,000 operations (240VAC~ 6A)
    Life cycle_MechanicalMin. 1,000,000 operations
    Vibration_Malfunction0.75mm amplitude at frequency of 10 to 55Hzin each X,Y,Z direction for 10 min
    Shock1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times
    Shock_Malfunction300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
    Environment_Ambient temperature-30 to 70℃, storage: -40 to 70℃
    Environment_Ambient humidity35 to 90%RH, storage : 35 to 90%RH
    Protection structureIP67(IEC standerd, except head)
    Connection TypeG1/2 Connector cable
    MaterialHead: polyamide 6, case: polyamide 6, operation key: stainless steel 304
    Sold separatelyOperation key
    WeightApprox. 120g(approx. 80g)
