SFLA14-127

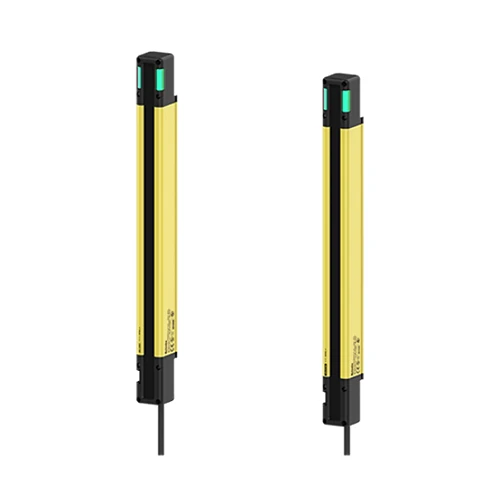

Safety Light Curtains, Advanced type, Through-beam, 10M Sensing distance, 127pcs & 9mm Optical axis pitch, 1,152mm length, 24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Sensing type | Through-beam type |
|---|---|
| Light source | Infrared LED(855nm) |
| Effective aperture angle(EAA) | Within ± 2.5 ° when the sensing distance is greater than 3 m for both emitter and receiver. |
| Sensing distance | Short - Long mode (setting switch or atLightCurtain) |
| Short mode | 0.2 to 5 m |
| Long mode | 0.2 to 10 m |
| Detection capability | Ø 14 mm (finger) |
| Sensing target | Opaque |
| Protective height | 1152 mm |
| Number of optical axes | 127 |
| Optical axis pitch | 9mm |
| Series connection | Max. 4 SET (≤ 400 optical axes) |
| Power supply | 24 VDC ±20 %(ripple P-P: ≤10 %) |
| Current consumption | Emitter: ≤106mA, receiver: ≤181mA |
| Safety related output: OSSD output | NPN or PNP open collector Load voltage : ON - 24 VDC (except for the residual voltage), OFF - 0 VDCLoad current : ≤ 300 mA Residual voltage : ≤ 2 VDC (except for voltage drop due to wiring)Load capability: ≤ 2.2 ㎌ Leakage current: ≤ 2.0 mA Wire resistance of load: ≤ 2.7 Ω |
| Auxiliary output(AUX 1/2) | NPN or PNP open collector Load voltage: ≤ 24 VDC , Load current: ≤ 100 mA,Residual voltage: ≤ 2 VDC (except for voltage drop due to wiring) |
| Lamp output(LAMP 1/2) | NPN or PNP open collector Load voltage: ≤ 24 VDC , Load current: ≤ 300 mA |
| Protection circuit | Reverse power polarity, reverse output polarity, output short-circuit over-current protection |
| Safety-related functions | Interlock (reset hold), external device monitoring (EDM), muting/override, Blanking (fixed blanking, floating blanking), reduced resolution |
| General functions | Self-test, alarm for reduction of incident light level, mutual interference prevention |
| Others functions | Change of sensing distance, switching to NPN or PNP, external test (light emission stops), auxiliary output (AUX 1, 2), lamp output (LAMP1, 2) |
| Synchronization type | Timing method by RS485 synchronous line |
| Insulation resistance | Over 20MΩ (at 500VDC megger) |
| Noise immunity | The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC |
| Dielectric strength | 1,000VAC 50/60Hz for 1 minute |
| Vibration | 10 mm double amplitude at frequency of 5 to 150 Hz, 10 sweeps ni each X, Y, Z direction |
| Shock | 250 m/s² (≈ 25 G), pulse width 6 ms in each X, Y, Z direction for 100 times |
| Environment_Ambient illumination | Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Ambient temperature | -30 to 60 ℃, storage: -30 ~ 70 ℃ (no freezing or condensation) |
| Ambient humidity | 35 to 85 %RH, storage: 35 to 95 %RH (non-freezing or non-condensation) |
| Protection structure | IP65, IP67(IEC Standard), IP67G (JEM Standard), IP69K (DIN Standard) |
| Material | Case: Aluminum, Front cover and sensing part: Polymethyl methacrylate, End cap: polycarbonate, Power I/O cable and connector cable: polyurethane (PUR) or polyvinyl chloride (PVC), Y type connector cable: polyvinyl chloride (PVC), lamp output cable and series connector cable: polyurethane (PUR), Top / Bottom adjustable bracket and Top / Bottom bracket: SUS304, Side adjustable bracket and Side bracket: nickel plated Zn |
| International standards | UL 508, CSA C22.2 No. 14, ISO 13849-1 (PL e, Cat. 4), ISO 13849-2 (PLe, Cat. 4), UL 61496-1 (Type 4, ESPE), UL 61496-2 (Type 4, AOPDs), IEC/EN 61496-1 (Type 4, ESPE), IEC/EN 61496-2 (Type 4, AOPDs), IEC/EN 61508-1~-7 (SIL 3), IEC/EN 62061 (SIL CL 3) |
