BANNER-ENGINEERING

    Out Of Stock

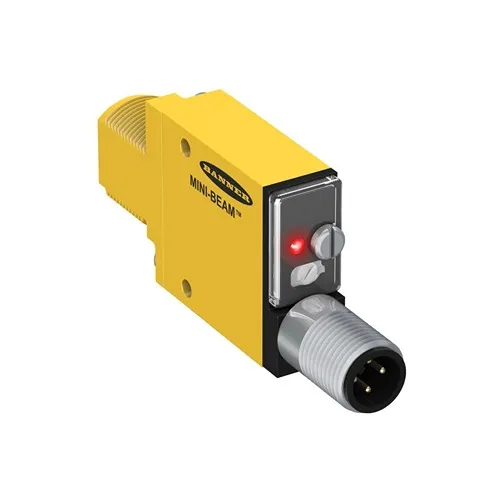

    SM312DQD

    Mini-Beam: Diffuse; Range: 380 Mm; Input: 10-30 V Dc; Output: Bipolar: 1 Npn; 1 Pnp; 4-Pin M12 Integral Qd;


    $149.18 $124.32 / each
    1
    SM312DQD
    BANNER-ENGINEERING
    FACTORY SEALED
    SM312DQD.pdf

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    IP Rating
    IP67
    Sensing Beam
    Infrared LED
    NEMA / UL Type Rating
    NEMA 4X
    Power
    DC
    Sensing Mode (General)
    Proximity
    Sensing Mode (Detailed)
    Diffuse
    Housing Style
    Rectangular w/M18 Mount
    Primary Housing Material
    Thermoplastic
    Input Output
    Discrete
    Max Sensing Distance (mm)
    380
    Outputs
    Bipolar (NPN & PNP)
    Power Supply/Supply Voltage
    10-30 V dc
    Connection
    Integral QD
    Quick Disconnect Type
    M12
    Min Op. Temp. (°C)
    -20
    Operation
    Light/Dark Operate
    Max Op. Temp. (°C)
    70
    Output response time (ms)
    1
    Delay at Power-up (ms)
    100
    Repeatability (µs)
    300
    Number of Pins
    4
    Max Op. Relative Humidity [%]
    90% @ 50°C
    Lens Material
    Acrylic
    Adjustments
    Potentiometer
    Barrel Diameter (mm)
    18
    Indicator
    LEDs
    Feature: Encapsulated
    Yes
    Feature: Audible
    No
    Feature: Quick Disconnect
    Yes
