BANNER-ENGINEERING

    Out Of Stock

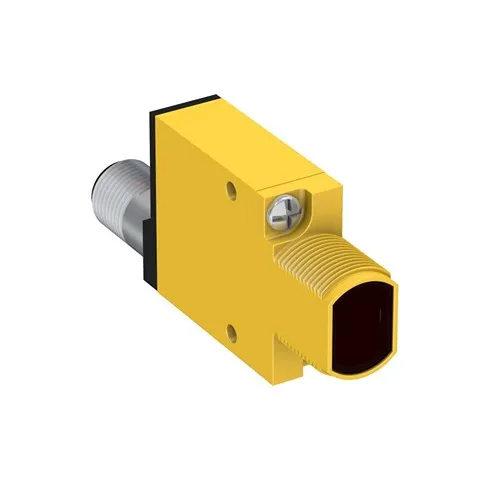

    SM31EQD

    Mini-Beam: Emitter; Range: 3 M; Input: 10-30 V Dc; Output: Not Applicable; 4-Pin M12 Integral Qd;


    $88.70 $73.92 / each
    1
    SM31EQD
    BANNER-ENGINEERING
    FACTORY SEALED
    SM31EQD.pdf

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    IP Rating
    IP67
    Sensing Beam
    Infrared LED
    NEMA / UL Type Rating
    NEMA 4X
    Power
    DC
    Sensing Mode (General)
    Opposed
    Sensing Mode (Detailed)
    Emitter
    Housing Style
    Rectangular w/M18 Mount
    Primary Housing Material
    Thermoplastic
    Max Sensing Distance (mm)
    3000
    Power Supply/Supply Voltage
    10-30 V dc
    Connection
    Integral QD
    Quick Disconnect Type
    M12
    Min Op. Temp. (°C)
    -20
    Operation
    N/A
    Max Op. Temp. (°C)
    70
    Repeatability (µs)
    140
    Number of Pins
    4
    Max Op. Relative Humidity [%]
    90% @ 50°C
    Lens Material
    Acrylic
    Adjustments
    Potentiometer
    Barrel Diameter (mm)
    18
    Indicator
    LEDs
    Opposed Mode Emitter/Receiver
    Emitter
    Feature: Encapsulated
    Yes
    Feature: Audible
    No
    Feature: Quick Disconnect
    Yes
