AUTONICS

    Out Of Stock

    SRH1-A260-N

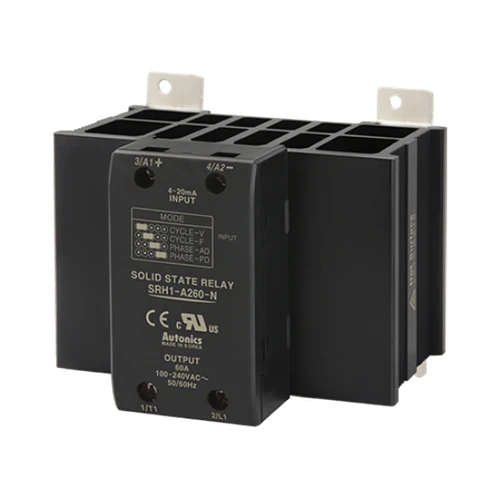

    SSR, Analog Input, Single phase, Input 4-20mA, Load 100-240VAC, 60A


    $118.24 $98.53 / each
    1
    SRH1-A260-N
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Control phaseSingle-phase
    HeatsinkHeatsink
    Mounting typePanel, DIN rail
    Rated input currentAnalog input 4-20mA
    Rated load voltage100-240VAC~ (50/60Hz)
    Dielectric strength4000VAC 50/60Hz for 1 min (input-output, input/output-case)
    Rated load current60A
    Operation modeCycle control(variable cycle/fi xed cycle)
    Phase control(phase equality division
    method/power equality division method)
    Environment_Ambient temperature-20 to 70℃, storage: -20 to 100℃
    (The rated load current capacity is different depending on ambient temperature. Refer to 'â–£ SSR Derating Curve'.)
    Environment_Ambient humidity45 to 85% RH, storage: 45 to 85% RH
    WeightApprox. 760g(Approx. 680g)
