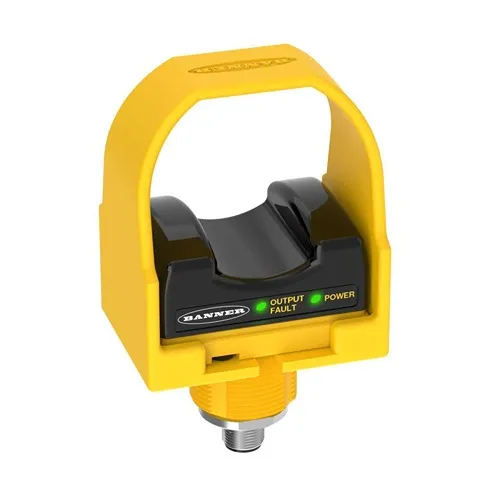

    STBVP6Q5

    Stb Series: Self-Checking Touch Button W/Yellow F.C.; Input: 10-30 V Dc; Upper Housing: Black Polyetherimide; Output: Complementary Pnp; M12 Integral Qd;

    SENSORS

    ||

    BANNER-ENGINEERING

    5.00 10

    10 Review(s)
    $175.39 $146.16 / each
    1
    STBVP6Q5
    BANNER-ENGINEERING
    FACTORY SEALED
    STBVP6Q5.pdf

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.

    Power
    DC
    Non-Illuminated
    Yes
    IP Rating
    IP66
    Display
    No
    NEMA / UL Type Rating
    NEMA 1, 3, 4, 4X, 12, 13
    Sensing Mode (General)
    Single Point Optical
    Housing Style
    Base Mount - Saddle
    Primary Housing Material
    Thermoplastic Polyetherimide
    Actuation
    Yes
    Activation Function
    Optical
    Mounting Thread
    M30 x 1.5
    Product Size (mm)
    Other
    Connection
    Integral QD
    Quick Disconnect Type
    M12
    Max Current Color (mA)
    75
    Number of Input Pins/Conductors
    4
    Operation
    Normally Open/Normally Closed
    Supply Voltage
    10-30 V dc
    Output Type
    Complimentary (PNP)
    Max Output Response Time (ms)
    20
    Physical Dimensions (LxWxH or DxH mm)
    68.0 x 51.0 x 116.0
    Number of Beams
    1
    Environmental Rating
    IP66
    Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
    High Temperature (up to 100° C)
    50
    Field Cover Color
    Yellow
    Primary Housing Color
    Black
    Button Operation
    Momentary
    Secondary Material
    Thermoplastic
    Feature: Audible
    No
    Feature: Quick Disconnect
    Yes
